CENTRIFUGAL PUMPS
CENTRIFUGAL PUMPS

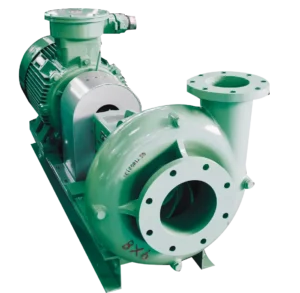

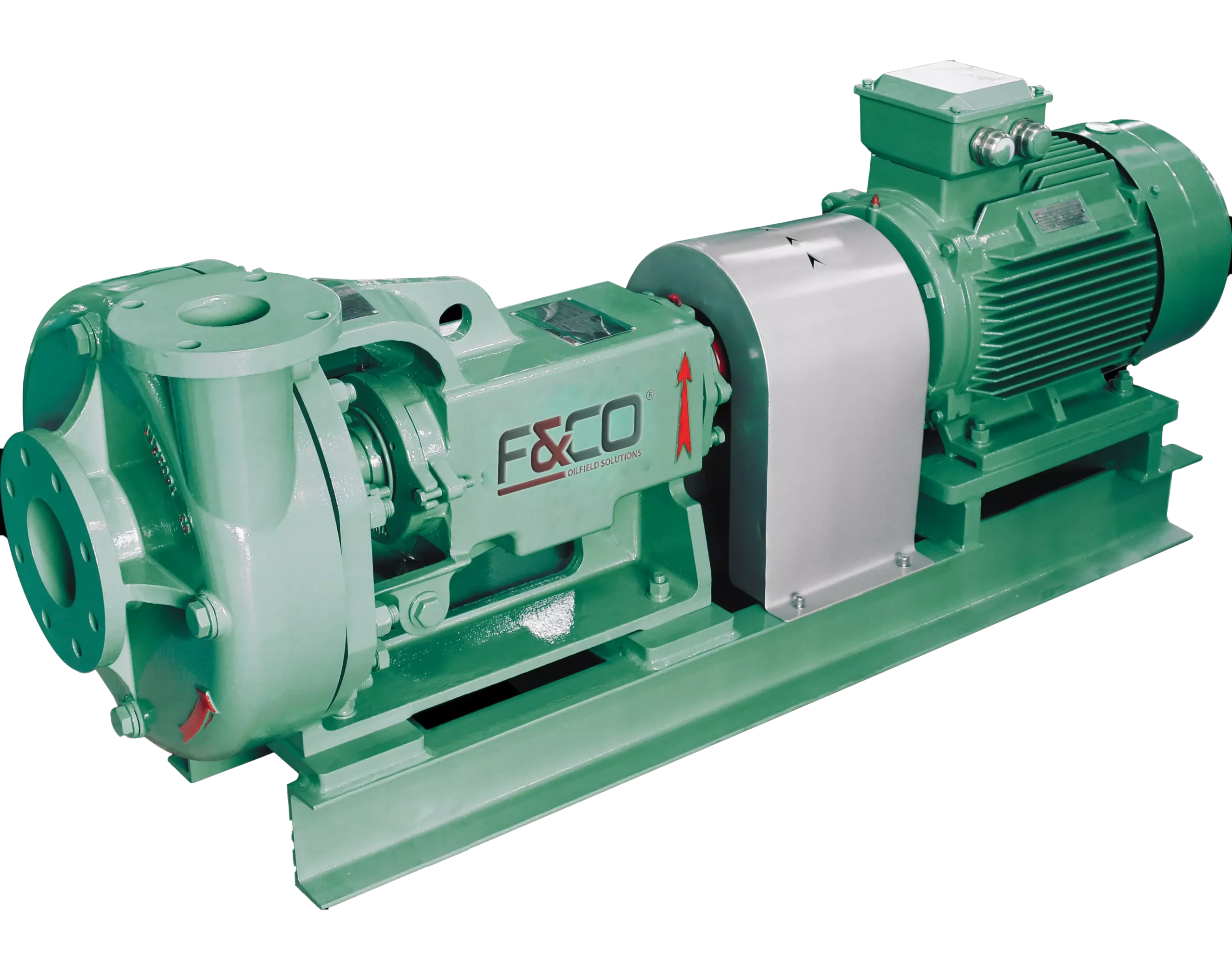

The centrifugal pump (Centrifuge Pumps) distributed by F&CO® OILFIELD SOLUTIONS is the ideal device for pumping fluid for the sand trap, descaler, mud cleaner, decanter centrifuges, they also function as mixing pumps for drilling fluids. It can also be used as auxiliary loading pumps for mud pumps and as replacement pumps for pumping to the wellhead.
DATA SHEET
F&CO: CENTRIFUGE PUMP DESCRIPTION
| F&CO OILFIELD SOLUTIONS CENTRIFUGE PUMP | ||||||||||||||||||
| Model | FCOCP8X6320LS | FCPCP8X6320HS | FCOCP8X6272LS | FCOCP8X6272HS | FCOCP8X6200LS | FCOCP8X6200HS | FCOCP8X6150LS | FCOCP8X6150HS | FCOCP5X4120LS | FCOCP5X4120HS | FCOCP5X490LS | FCOCP5X490HS | FCOCP4X365LS | FCOCP4X365HS | FCOCP4X355LS | FCOCP4X355HS | FCOCP4X345LS | FCOCP4X345HS |
| Flow (m3/h) | 320 (1410 gpm) | 272 (1200 gpm) | 200 (880 gpm) | 150 (660 gpm) | 120 (530 gpm) | 90 (400 gpm) | 65 (290 gpm) | 55 (240 gpm) | 45 (200 gpm) | |||||||||
| Elevation (m) | 35 | 35 | 35 | 30 | 35 | 30 | 35 | 28 | 25 | |||||||||
| Power (Kw) | 75 (100 HP) | 55 (75 HP) | 45 (60 HP) | 37 (50 HP) | 30 (40 HP) | 22 (30 HP) | 18.5 (25 HP) | 15 (20 HP) | 11 (15 HP) | |||||||||
| Speed (rpm) | 1450 (50 Hz) | 1750 (60 Hz) | 1450 (50 Hz) | 1750 (60 Hz) | 1450 (50 Hz) | 1750 (60 Hz) | 1450 (50 Hz) | 1750 (60 Hz) | 1450 (50 Hz) | 1750 (60 Hz) | 1450 (50 Hz) | 1750 (60 Hz) | 1450 (50 Hz) | 1750 (60 Hz) | 1450 (50 Hz) | 1750 (60 Hz) | 1450 (50 Hz) | 1750 (60 Hz) |
| Impeller size (in) | 14 | 12 | 13 | 11 | 13 | 10 | 12 | 9.5 | 13 | 11 | 12 | 10 | 13 | 12 | 12 | 10 | 11 | 9.5 |
| Weight (kg) | 1096 | 987 | 786 | 771 | 696 | 583 | 561 | 482 | 464 | |||||||||
| Dimension (mm) | 1968 X 650 X 1017 | 1894 X 650 X 957 | 1811 X 558 X 858 | 1786 X 558 X 858 | 1696 X 568 X 805 | 1648 X 568 X 800 | 1595 X 505 X 800 | 1550 X 505 X 755 | 1510 X 505 X 755 |
