COILED TUBING UNITS

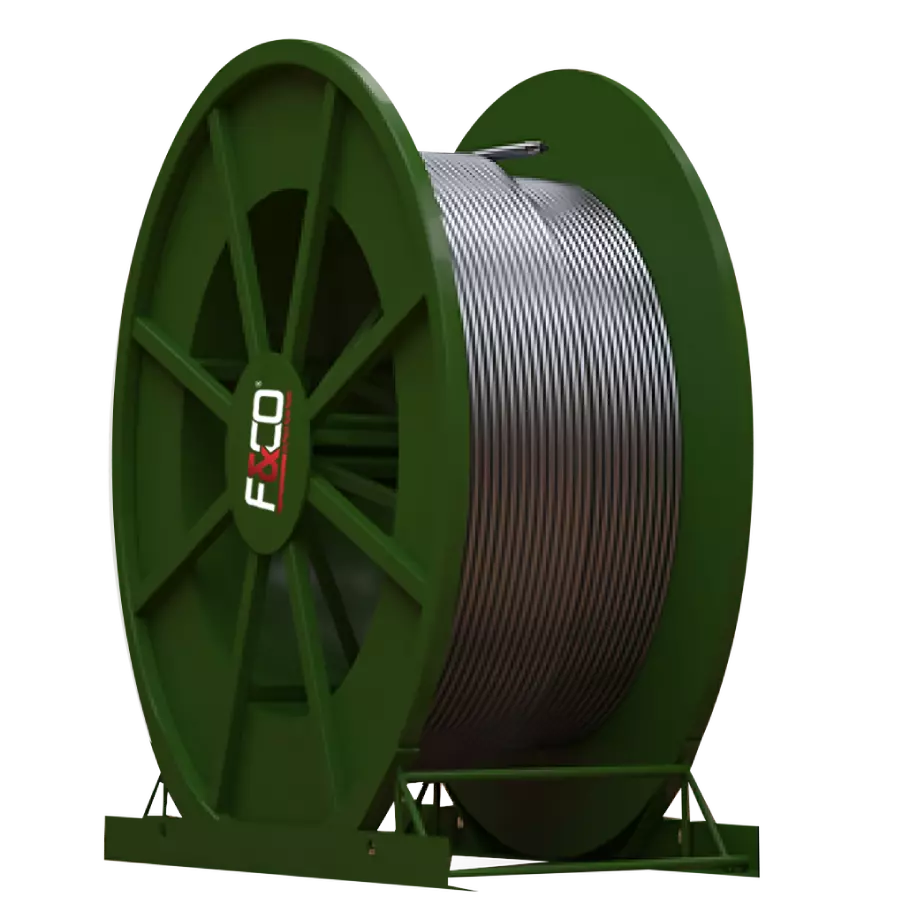

F&CO® OILFIELD SOLUTIONS flexible pipe is a seamless pipe formed by welding together several lengths of flexible pipe over 100 meters in length by butt welding or slant welding. The length of the flexible pipe is generally from several hundred meters to several kilometres. It can be spooled onto a reel and used for specific downhole operations, such as workover, drilling, stimulation and well completion.

For applications in sour environments, F&CO® OILFIELD SOLUTIONS provides the best development in corrosion resistant high chromium alloy coiled tubing and titanium alloy coiled tubing.

Our laser welded flexible pipe has the following advantages:

Laser welding has small internal weld collar, smooth transition of reinforcement and large pipe diameter. The weld seam welding is stable, and the welding collar is excellent in shape and consistency.

The laser welding is self-melting welding, and the whole welding process is under the protection of insertion gas, the input heat is small, the welding is firm and not easy to cause defects such as desoldering, cold, stacking, strip edge damage, inclusions and so on.

”The flexible pipe provided by F&CO® OILFIELD SOLUTIONS has been inspected by China petroleum pipe material research institute, and all the products in the line meet the requirements of API Spec 5ST.”

DATA SHEET

F&CO: COILED TUBING UNITS DESCRIPTION


Technical Data of Coiled Tubing
Materials		ST70 (CT70)	ST80 (CT80)	ST90 (CT90)	ST100 (CT100)	ST110 (CT110)	ST130 (CT130)	ST316L-40	ST13Cr-80	ST2205-80	ST2507-90
Chemical Composition	Cmax	0.16	0.16	0.16	0.16	0.16	0.16	0.030	0.15	0.030	0.030
	Mn max	1.20	1.20	1.20	1.65	1.65	1.90	2.00		2.00	1.20
	P max	0.025	0.020	0.020	0.025	0.025	0.025	0.045	0.120	0.030	0.035
	S max	0.005	0.005	0.005	0.005	0.005	0.005	0.030	0.030	0.020	0.020
	Si max	0.50	0.50	0.50	0.50	0.50	0.50	0.75		1.000	0.80
	Cr							16.0 - 18.0	≥ 11.5	22.0 -23.0	24.0 -26.0
	Ni							10.0 - 14.0		4.5 - 6.5	6.0 - 8.0
	Mo							2.00 - 3.00		3.0 - 3.5	3.0 - 5.0
Yield Strength (min), psig		70,000	80,000	90,000	100,000	110,000	130,000	40,000	80,000	80,000	90,000
Yield Strength (max), psig		80,000	90,000	100,000
Tensile Strength (min), psig		80,000	88,000	97,000	108,000	115,000	135,000	70,000	88,000	95,000	116,000
Hardness, HRC		22	22	22	28	30	36	200 hv	30	30	32
Flaring experiment		When the minimum inner diameter is reached after flaring, there will be no cracking in the weld area or base metal
Flattening test		Before the distance between the plates is less than the specified value, no cracks or fractures exceeding 0.125 in (3.2 mm) should occur on


ST70 0.75 in to 2.0 in
Outside Diameter	Wall Thickness		Mass Per Unit Length	Nominal Inside Diameter	Nominal Inside Diameter		Min Hydro Test Pressure	Min. Internal Yield Pressure	Min. Internal Yield Pressure
	Specified	Min
OD	t	t min	wpe	ID	Min. Yield Strength	Min. Tensile Strength
in	in	in	lbs/ft	in	lbs	lbs	psig	psig	psig
0.750	0.080	0.075	0.57	0.590	11,800	13,500	12,200	1,600	12,600
	0.083	0.078	0.59	0.584	12,200	13,900	12,900	14,300	13,200
	0.089	0.082	0.62	0.576	12,700	14,500	13,500	15,000	13,700
	0.095	0.900	0.67	0.560	13,700	15,600	14,700	16,300	14,900
	0.102	0.097	0.71	0.546	14,500	16,600	15,800	17,600	16,000
	0.109	0.104	0.75	0.532	15,400	17,600	16,400	18,200	16,500
	0.118	0.110	0.80	0.514	16,400	18,700	17,500	19,500	17,600
1.000	0.075	0.070	0.74	0.850	15,300	17,400	8,800	9,800	9,100
	0.080	0.075	0.79	0.840	16,200	18,500	9,300	10,300	9,700
	0.083	0.078	0.81	0.834	16,700	19,100	9,800	10,900	10,200
	0.087	0.082	0.85	0.826	17,500	20,000	10,300	11,400	10,600
	0.095	0.090	0.92	0.810	18,900	21,600	11,200	12,400	11,500
	0.102	0.097	0.98	0.796	20,100	23,000	12,200	13,500	12,400
	0.109	0.104	1.04	0.782	21,400	24,400	12,600	14,000	12,900
	0.118	0.110	1.11	0.764	22,900	26,200	13,500	15,000	13,700
	0.125	0.117	1.17	0.750	24,100	27,500	14,400	16,000	14,600
	0.134	0.126	1.24	0.732	25,500	29,200	15,300	17,000	15,400
1.250	0.075	0.070	0.94	1.100	19,400	22,100	7,100	7,900	6,100
	0.080	0.075	1.00	1.090	20,600	23,500	7,500	8,300	6,700
	0.089	0.082	1.08	1.076	22,300	25,400	8,300	9,200	7,100
	0.095	0.090	1.17	1.060	24,100	27,600	9,000	10,000	9,400
	0.102	0.097	1.25	1.046	25,800	29,400	9,700	10,800	10,200
	0.109	0.104	1.33	1.032	27,400	31,300	10,200	11,300	10,500
	0.118	0.110	1.43	1.014	29,400	33,600	10,900	12,100	11,300
	0.125	0.117	1.50	1.000	30,900	35,300	11,600	12,900	12,000
	0.134	0.126	1.60	0.982	32,900	37,600	12,300	13,700	12,700
	0.145	0.137	1.71	0.960	35,200	40,300	13,500	15,000	13,700
	0.156	0.148	1.82	0.938	37,500	42,900	14,600	16,200	14,700
	0.175	0.167	2.01	0.900	41,400	47,300	15,900	17,700	16,100
1.500	0.087	0.082	1.31	1.326	27,000	30,900	6,900	7,700	5,700
	0.095	0.090	1.43	1.310	29,400	33,500	7,600	8,400	6,900
	0.102	0.097	1.52	1.296	31,400	35,800	8,200	9,100	8,000
	0.109	0.104	1.62	1.282	33,300	38,100	8,600	9,500	8,500
	0.118	0.110	1.74	1.264	35,900	41,000	9,200	10,200	9,500
	0.125	0.117	1.84	1.250	37,800	43,200	9,800	10,900	10,200
	0.134	0.126	1.96	1.233	40,300	46,000	10,400	11,600	10,800
	0.145	0.137	2.10	1.210	43,200	49,400	11,300	12,600	11,700
	0.156	0.148	2.24	1.188	46,100	52,700	12,200	13,600	12,600
	0.175	0.167	2.48	1.150	51,000	58,300	13,500	15,000	13,700
	0.188	0.180	2.64	1.124	54,200	62,000	14,400	16,000	14,600
	0.204	0.196	2.83	1.092	58,100	66,400	15,600	17,300	15,700
1.750	0.095	0.090	1.68	1.560	34,600	39,500	6,500	7,200	5,000
	0.102	0.097	1.80	1.546	37,000	42,200	7,000	7,800	6,000
	0.109	0.104	1.91	1.532	39,300	45,000	7,300	8,100	6,500
	0.118	0.110	2.06	1.514	42,300	48,400	7,800	8,700	7,400
	0.125	0.117	2.17	1.500	44,700	51,110	8,400	9,300	8,400
	0.134	0.126	2.31	1.482	47,600	54,400	8,900	9,900	9,300
	0.145	0.137	2.49	1.460	51,200	58,500	9,700	10,800	10,200
	0.156	0.148	2.66	1.438	54,700	62,500	10,500	11,700	10,900
	0.175	0.167	2.95	1.400	60,600	69,300	11,600	12,900	12,000
	0.188	0.180	3.14	1.374	64,600	73,800	12,400	13,800	12,700
	0.204	0.196	3.37	1.342	69,400	79,300	13,500	15,000	13,700
	0.224	0.216	3.65	1.302	75,200	85,900	14,800	16,400	14,900
	0.250	0.242	4.01	1.250	82,500	94,200	16,500	18,300	16,600
2.000	0.109	0.104	2.20	1.782	45,300	51,800	6,400	7,100	4,900
	0.118	0.110	2.37	1.764	48,800	55,800	6,900	7,700	5,700
	0.125	0.117	2.51	1.750	51,500	58,900	7,400	8,200	6,600
	0.134	0.126	2.67	1.732	55,000	62,800	7,800	8,700	7,400
	0.145	0.137	2.88	1.710	59,200	67,600	8,600	9,500	8,700
	0.156	0.148	3.08	1.688	63,300	72,300	9,300	10,300	9,700
	0.175	0.167	3.41	1.650	70,200	80,300	10,300	11,400	10,600
	0.188	0.176	3.64	1.624	74,900	85,600	11,000	12,200	11,300
	0.204	0.192	3.92	1.592	80,600	92,100	11,900	13,200	12,200
	0.224	0.212	4.25	1.552	87,500	100,000	13,100	14,500	13,300
	0.250	0.238	4.68	1.500	96,200	110,000	14,600	16,200	14,800
	0.276	0.261	5.09	1.448	104,600	119,600	15,700	17,400	15,800
	0.281	0.266	5.16	1.438	106,200	121,400	15,900	17,700	16,000


ST70 2.375 in to 3.5 in
Outside Diameter	Wall Thickness		Mass Per Unit Length	Nominal Inside Diameter	Tube Body Load		Min Hydro Test Pressure	Min. Internal Yield Pressure	Collapse Pressure
	Specified	Min
OD	t	t min	wpe	ID	Min. Yield Strength	Min. Tensile Strength
in	in	in	lbs/ft	in	lbs	lbs	psig	psig	psig
2.375	0.109	0.104	2.64	2.157	54,300	62,100	5,400	6,000	3,200
	0.118	0.110	2.85	2.139	58,600	66,900	5,900	6,500	3,900
	0.125	0.117	3.01	2.125	61,900	70,700	6,200	6,900	4,600
	0.134	0.126	3.21	2.107	66,000	75,500	6,700	7,400	5,300
	0.145	0.137	3.46	2.085	71,100	81,300	7,300	8,100	6,400
	0.156	0.148	3.70	2.063	76,100	87,000	7,800	8,700	7,400
	0.175	0.167	4.12	2.025	84,700	96,800	8,600	9,600	8,800
	0.188	0.176	4.40	1.999	90,400	103,300	9,300	10,300	9,700
	0.204	0.192	4.73	1.967	97,400	111,300	10,100	11,200	10,500
	0.224	0.212	5.15	1.927	106,000	121,100	11,100	12,300	11,400
	0.250	0.238	5.68	1.875	116,800	133,500	12,400	13,800	12,700
	0.276	0.261	6.19	1.823	127,400	145,600	13,400	14,900	13,700
	0.281	0.266	6.29	1.813	139,400	147,900	13,600	15,100	13,800
	0.300	0.285	6.65	1.775	136,900	156,500	14,500	16,100	14,700
2.625	0.118	0.110	3.15	2.389	65,100	74,300	5,300	5,900	3,000
	0.125	0.117	3.33	2.375	68,700	78,500	5,700	6,300	3,600
	0.134	0.126	3.55	2.357	73,400	83,900	6,000	6,700	4,200
	0.145	0.137	3.84	2.335	79,100	90,400	6,600	7,300	5,200
	0.156	0.148	4.12	2.313	84,700	96,800	7,100	7,900	6,100
	0.175	0.167	4.58	2.275	94,300	107,800	7,800	8,700	7,400
	0.188	0.176	4.90	2.249	100,800	115,100	8,500	9,400	8,400
	0.204	0.192	5.28	2.217	108,600	124,100	9,200	10,200	9,500
	0.224	0.212	5.75	2.177	118,300	135,200	10,100	11,200	10,400
	0.250	0.238	6.35	2.125	130,600	149,200	11,300	12,500	11,600
	0.276	0.261	6.93	2.073	142,600	162,900	12,200	13,500	12,500
	0.281	0.266	7.04	2.063	144,800	165,500	12,300	13,700	12,700
	0.300	0.285	7.46	2.025	153,400	175,300	13,200	14,700	13,500
2.875	0.134	0.126	3.93	2.607	80,800	92,300	5,500	6,100	3,300
	0.145	0.137	4.23	2.585	87,100	99,500	6,000	6,700	4,200
	0.156	0.148	4.53	2.563	93,300	106,600	6,500	7,200	5,100
	0.175	0.167	5.05	2.525	103,900	118,800	7,200	8,000	6,300
	0.188	0.176	5.40	2.499	111,100	127,000	7,700	8,600	7,100
	0.204	0.192	5.82	2.467	119,800	136,900	8,400	9,300	8,300
	0.224	0.212	6.35	2.427	130,600	149,200	9,200	10,200	9,600
	0.250	0.238	7.02	2.375	144,300	164,900	10,400	11,500	10,700
	0.276	0.261	7.67	2.323	157,700	180,300	11,200	12,400	11,500
	0.281	0.266	7.79	2.313	160,300	183,200	11,300	12,600	11,700
	0.300	0.285	8.26	2.275	169,900	194,200	12,200	13,500	12,500
3.250	0.145	0.137	4.81	2.960	99,000	113,200	5,300	5,900	3,100
	0.156	0.148	5.16	2.938	106,100	121,300	5,800	6,400	3,800
	0.175	0.167	5.75	2.900	118,300	135,200	6,400	7,100	4,800
	0.188	0.176	6.15	2.874	126,600	144,700	6,800	7,600	5,600
	0.204	0.192	6.64	2.842	136,600	156,200	7,400	8,200	6,600
	0.224	0.212	7.25	2.802	149,100	170,400	8,200	9,100	7,900
	0.250	0.238	8.02	2.750	164,900	188,500	9,200	10,200	9,600
	0.276	0.261	8.77	2.698	180,500	206,300	9,900	11,000	10,300
	0.281	0.266	8.92	2.688	183,500	209,700	10,100	11,200	10,400
	0.300	0.285	9.46	2.650	194,600	222,400	10,800	12,000	11,200
3.500	0.156	0.148	5.58	3.188	114,700	131,100	5,400	6,000	3,100
	0.175	0.167	6.22	3.150	128,000	146,200	5,900	6,600	4,100
	0.188	0.176	6.66	3.124	136,900	156,500	6,400	7,100	4,800
	0.204	0.192	7.19	3.092	147,900	169,000	6,900	7,700	5,700
	0.224	0.212	7.84	3.052	161,400	184,400	7,600	8,400	6,900
	0.250	0.238	8.69	3.000	178,700	204,200	8,600	9,500	8,600
	0.276	0.261	9.51	2.948	195,700	223,600	9,300	10,300	9,600
	0.281	0.266	9.67	2.938	198,900	227,300	9,400	10,400	9,800
	0.300	0.285	10.26	2.900	211,100	241,300	10,100	11,200	10,400


ST80 0.75 in to 2.0 in

Outside Diameter	Wall Thickness		Mass Per Unit Length	Nominal Inside Diameter	Tube Body Load		Min Hydro Test Pressure	Min. Internal Yield Pressure	Collapse Pressure
	Specified	Min
OD	t	t min	wpe	ID	Min. Yield Strength	Min. Tensile Strength
in	in	in	lbs/ft	in	lbs	lbs	psig	psig	psig
0.750	0.080	0.075	0.57	0.590	13,500	15,200	14,000	15,600	14,400
	0.083	0.078	0.59	0.584	13,900	15,700	14,700	16,300	15,000
	0.087	0.082	0.62	0.576	14,500	16,300	15,400	17,100	15,700
	0.095	0.090	0.67	0.560	15,600	17,600	16,700	18,600	17,000
	0.102	0.097	0.71	0.546	16,600	18,700	17,500	20,100	18,300
	0.109	0.104	0.75	0.532	17,600	19,800	17,500	20,800	18,900
	0.118	0.110	0.80	0.514	18,700	21,100	17,500	22,300	20,100
1.000	0.075	0.070	0.74	0.850	17,400	19,600	10,100	11,200	10,100
	0.080	0.075	0.79	0.840	18,500	20,800	10,600	11,800	11,100
	0.083	0.078	0.81	0.834	19,100	21,500	11,200	12,400	11,600
	0.087	0.082	0.85	0.826	20,000	22,500	11,700	13,000	12,100
	0.095	0.090	0.92	0.810	21,600	24,300	12,800	14,200	13,200
	0.102	0.097	0.98	0.796	23,000	25,900	13,900	15,400	14,200
	0.109	0.104	1.04	0.782	24,400	27,500	14,400	16,000	14,700
	0.118	0.110	1.11	0.764	26,200	29,400	15,400	17,100	15,700
	0.125	0.117	1.17	0.750	27,500	30,900	16,500	18,300	16,700
	0.134	0.126	1.24	0.732	29,200	32,800	17,500	19,400	17,600
1.250	0.075	0.070	0.94	1.100	22,100	24,900	8,100	9,000	6,600
	0.080	0.075	1.00	1.090	23,500	26,500	8,600	9,500	7,400
	0.087	0.082	1.08	1.076	25,400	28,600	9,500	10,500	8,900
	0.095	0.090	1.17	1.060	27,600	31,000	10,300	11,400	10,700
	0.102	0.097	1.25	1.046	29,400	33,100	11,200	12,400	11,600
	0.109	0.104	1.33	1.032	31,300	35,200	11,600	12,900	12,000
	0.118	0.110	1.43	1.014	33,600	37,800	12,400	13,800	12,800
	0.125	0.117	1.50	1.000	35,300	39,800	13,300	14,800	13,700
	0.134	0.126	1.60	0.982	37,600	42,300	14,100	15,700	14,500
	0.145	0.137	1.71	0.960	40,300	45,300	15,400	17,100	15,700
	0.156	0.148	1.82	0.938	42,900	48,300	16,700	18,500	16,800
	0.175	0.167	2.01	0.900	47,300	53,200	17,500	20,200	18,400
1.500	0.087	0.082	1.31	1.326	30,900	34,800	7,900	8,800	6,200
	0.095	0.090	1.43	1.310	33,500	37,700	8,600	9,600	7,500
	0.102	0.097	1.52	1.296	35,800	40,300	9,400	10,400	8,800
	0.109	0.104	1.62	1.282	38,100	42,900	9,700	10,800	9,500
	0.118	0.110	1.74	1.264	41,000	46,100	10,400	11,600	10,900
	0.125	0.117	1.84	1.250	43,200	48,600	11,200	12,400	11,600
	0.134	0.126	1.96	1.232	16,000	51,800	11,900	13,200	12,300
	0.145	0.137	2.10	1.210	49,400	55,600	13,000	14,400	13,400
	0.156	0.148	2.24	1.188	52,700	59,300	14,000	15,600	14,400
	0.175	0.167	2.48	1.150	58,300	65,600	15,400	17,100	15,700
	0.188	0.180	2.64	1.124	62,000	69,700	16,500	18,300	16,700
	0.204	0.196	2.83	1.092	66,400	74,800	17,500	19,700	17,900
1.750	0.095	0.090	1.68	1.560	39,500	44,500	7,400	8,200	5,400
	0.102	0.097	1.80	1.546	42,200	47,500	8,000	8,900	6,500
	0.109	0.104	1.91	1.532	45,000	50,600	8,400	9,300	7,100
	0.118	0.110	2.06	1.514	48,400	54,400	9,000	10,000	8,200
	0.125	0.117	2.17	1.500	51,100	57,400	9,600	10,700	9,300
	0.134	0.126	2.31	1.482	54,400	61,200	10,300	11,400	10,700
	0.145	0.137	2.49	1.460	58,500	35,800	11,200	12,400	11,600
	0.156	0.148	2.66	1.438	62,500	70,300	12,100	13,400	12,500
	0.175	0.167	2.95	1.400	69,300	77,900	13,300	14,800	13,700
	0.188	0.180	3.14	1.374	73,800	83,000	14,200	15,800	14,600
	0.204	0.196	3..37	1.342	79,300	89,200	15,400	17,100	15,700
	0.224	0.216	3.65	1.302	85,900	96,600	16,800	18,700	17,100
	0.250	0.242	4.01	1.250	94,200	106,000	17,500	20,900	18,900
2.000	0.109	0.104	2.20	1.782	51,800	58,300	7,300	8,100	5,300
	0.118	0.110	2.37	1.764	55,800	62,800	7,900	8,800	6,200
	0.125	0.117	2.51	1.750	58,900	66,300	8,500	9,400	7,200
	0.134	0.126	2.67	1.732	62,800	70,700	9,000	10,000	8,200
	0.145	0.137	2.88	1.710	67,600	76,100	9,800	10,900	9,600
	0.156	0.148	3.08	1.688	72,300	81,300	10,600	11,800	11,100
	0.175	0.167	3.41	1.650	80,300	90,300	11,700	13,000	12,100
	0.188	0.176	3.64	1.624	85,600	96,300	12,500	13,900	12,900
	0.204	0.192	3.92	1.592	92,100	103,600	13,600	15,100	13,900
	0.224	0.212	4.25	1.552	100,000	112,500	14,900	16,500	15,200
	0.250	0.238	4.68	1.500	110,000	123,700	16,700	18,500	16,900
	0.276	0.261	5.09	1.448	119,600	134,500	17,500	19,900	18,100
	0.281	0.266	5.16	1.438	121,400	136,600	17,500	20,200	18,300


ST80 2.375 in to 3.50 in

Outside Diameter	Wall Thickness		Mass Per Unit Length	Nominal Inside Diameter	Tube Body Load		Min Hydro Test Pressure	Min. Internal Yield Pressure	Collapse Pressure
	Specified	Min
OD	t	t min	wpe	ID	Min. Yield Strength	Min. Tensile Strength
in	in	in	lbs/ft	in	lbs	lbs	psig	psig	psig
2.375	0.109	0.104	2.64	2.157	62,100	69,800	6,200	6,900	3,400
	0.118	0.110	2.85	2.139	66,900	75,300	6,700	7,400	4,100
	0.125	0.117	3.01	2.125	70,700	79,500	7,100	7,900	4,900
	0.134	0.126	3.21	2.107	75,500	84,900	7,600	8,400	5,800
	0.145	0.137	3.46	2.085	81,300	91,400	8,300	9,200	7,000
	0.156	0.148	3.70	2.063	87,000	97,900	9,000	10,000	8,200
	0.175	0.167	4.12	2.025	96,800	108,900	9,900	11,000	9,800
	0.188	0.176	4.40	1.999	103,300	116,300	10,600	11,800	11,000
	0.204	0.192	4.73	1.967	111,300	125,200	11,500	12,800	11,900
	0.224	0.212	5.15	1.927	121,100	136,200	12,700	14,100	13,100
	0.250	0.238	5.68	1.875	133,500	150,200	14,200	15,800	14,600
	0.276	0.261	6.19	1.823	145,600	163,800	15,300	17,000	15,600
	0.281	0.266	6.29	1.813	147,900	166,400	15,500	17,200	15,800
	0.300	0.285	6.65	1.775	156,500	176,000	16,600	18,400	16,800
2.625	0.118	0.110	3.15	2.389	74,300	83,600	6,000	6,700	3,200
	0.125	0.117	3.33	2.375	78,500	88,400	6,500	7,200	3,800
	0.134	0.126	3.55	2.357	83,900	94,400	6,800	7,600	4,500
	0.145	0.137	3.84	2.335	90,400	101,700	7,600	8,400	5,600
	0.156	0.148	4.12	2.313	96,800	108,900	8,100	9,000	6,700
	0.175	0.167	4.58	2.275	107,800	121,200	9,000	10,000	8,200
	0.188	0.176	4.90	2.249	115,100	129,500	9,600	10,700	9,300
	0.204	0.192	5.28	2.217	124,100	139,600	10,400	11,600	10,900
	0.224	0.212	5.75	2.177	135,200	152,100	11,400	12,700	11,900
	0.250	0.238	6.35	2.150	149,200	167,900	12,900	14,300	13,300
	0.276	0.261	6.93	2.073	162,900	183,300	14,000	15,500	14,300
	0.281	0.266	7.04	2.063	165,500	186,200	14,100	15,700	14,500
	0.300	0.285	7.46	2.025	175,300	197,200	15,100	16,800	15,400
2.875	0.134	0.126	3.93	2.607	92,300	103,800	6,300	7,000	3,500
	0.145	0.137	4.23	2.585	99,500	111,900	6,800	7,600	4,500
	0.156	0.148	4.53	2.563	106,600	119,900	7,500	8,300	5,500
	0.175	0.167	5.05	2.525	118,800	133,600	8,200	9,100	6,800
	0.188	0.176	5.40	2.499	127,000	142,800	8,800	9,800	7,900
	0.204	0.192	5.82	2.467	136,900	154,100	9,500	10,600	9,200
	0.224	0.212	6.35	2.427	179,200	167,900	10,500	11,700	11,000
	0.250	0.238	7.02	2.375	164,900	185,600	11,900	13,200	12,300
	0.276	0.261	7.67	2.323	180,300	202,800	12,800	14,200	13,200
	0.281	0.266	7.79	2.313	183,200	206,100	13,000	14,400	13,300
	0.300	0.285	8.26	2.275	194,200	218,400	13,900	15,400	14,200
3.250	0.145	0.137	4.81	2.960	113,200	127,300	6,100	6,800	3,300
	0.156	0.148	5.16	2.938	121,300	136,500	6,600	7,300	4,000
	0.175	0.167	5.75	2.900	135,200	152,200	7,300	8,100	5,200
	0.188	0.176	6.15	2.874	144,700	162,800	7,800	8,700	6,100
	0.204	0.192	6.64	2.842	156,200	175,700	8,500	9,400	7,300
	0.224	0.212	7.25	2.802	170,400	191,700	9,400	10,400	8,800
	0.250	0.238	8.02	2.705	188,500	212,100	10,500	11,700	10,900
	0.276	0.261	8.77	2.698	206,300	232,100	11,300	12,600	11,800
	0.281	0.266	8.92	2.688	209,700	235,900	11,500	12,800	11,900
	0.300	0.285	9.46	2.650	222,400	250,200	12,300	13,700	12,700
3.500	0.156	0.148	5.58	3.188	131,100	147,500	6,100	6,800	3,400
	0.175	0.167	6.22	3.150	146,200	164,500	6,800	7,500	4,300
	0.188	0.176	6.66	3.124	156,500	176,100	7,300	8,100	5,100
	0.204	0.192	7.19	3.092	169,000	190,100	7,900	8,800	6,200
	0.224	0.212	7.84	3.052	184,400	207,500	8,600	9,600	7,600
	0.250	0.238	8.69	3.000	204,200	229,700	9,800	10,900	9,600
	0.276	0.261	9.51	2.948	223,600	251,600	10,500	11,700	11,000
	0.281	0.266	9.67	2.938	227,300	255,800	10,700	11,900	11,200
	0.300	0.285	10.26	2.900	241,300	271,400	11,500	12,800	11,900


ST90 0.75 in to 2.0 in

Outside Diameter	Wall Thickness		Mass Per Unit Length	Nominal Inside Diameter	Tube Body Load		Min Hydro Test Pressure	Min. Internal Yield Pressure	Collapse Pressure
	Specified	Min
OD	t	t min	wpe	ID	Min. Yield Strength	Min. Tensile Strength
in	in	in	lbs/ft	in	lbs	lbs	psig	psig	psig
0.750	0.080	0.075	0.57	0.590	15,200	16,300	15,800	17,500	16,100
	0.083	0.078	0.59	0.584	15,700	16,900	16,600	18,400	16,900
	0.087	0.082	0.62	0.576	16,300	17,600	17,300	19,200	17,600
	0.095	0.090	0.67	0.560	17,600	19,000	17,500	21,000	19,100
	0.102	0.097	0.71	0.546	18,700	20,100	17,500	22,600	20,500
	0.109	0.104	0.75	0.532	19,800	21,300	17,500	23,400	21,200
	0.118	0.110	0.80	0.514	21,100	22,700	17,500	25,100	22,500
1.000	0.075	0.070	0.74	0.850	19,600	21,100	11,300	12,600	11,100
	0.080	0.075	0.79	0.840	20,800	22,400	12,000	13,300	12,200
	0.083	0.078	0.81	0.834	21,500	23,200	12,600	14,000	13,000
	0.087	0.082	0.85	0.826	22,500	24,200	13,100	14,600	13,600
	0.095	0.090	0.92	0.810	24,300	26,200	14,400	16,000	14,800
	0.102	0.097	0.98	0.796	25,900	27,900	15,600	17,300	16,000
	0.109	0.104	1.04	0.782	27,500	29,600	16,200	18,000	16,500
	0.118	0.110	1.11	0.764	29,400	31,700	17,300	19,200	17,600
	0.125	0.117	1.17	0.750	30,900	33,300	17,500	20,500	18,700
	0.134	0.126	1.24	0.732	32,800	35,400	17,500	21,800	19,800
1.250	0.075	0.070	0.94	1.100	24,900	26,900	9,100	10,100	7,100
	0.080	0.075	1.00	1.090	26,500	28,500	9,600	10,700	8,000
	0.087	0.082	1.08	1.076	28,600	30,800	10,600	11,800	9,700
	0.095	0.090	1.17	1.060	31,000	33,400	11,600	12,900	11,500
	0.102	0.097	1.25	1.046	33,100	35,700	12,500	13,900	13,000
	0.109	0.104	1.33	1.032	35,200	37,900	13,100	14,500	13,500
	0.118	0.110	1.43	1.014	37,800	40,700	14,000	15,600	14,400
	0.125	0.117	1.50	1.000	39,800	42,900	14,900	16,600	15,400
	0.134	0.126	1.60	0.982	42,300	45,600	15,900	17,700	16,300
	0.145	0.137	1.71	0.960	45,300	48,800	17,300	19,200	17,600
	0.156	0.148	1.82	0.938	48,300	52,000	17,500	20,800	18,900
	0.175	0.167	2.01	0.900	53,200	57,300	17,500	22,800	20,600
1.500	0.087	0.082	1.31	1.326	34,800	37,500	8,900	9,900	6,700
	0.095	0.090	1.43	1.310	37,700	40,700	9,700	10,800	8,100
	0.102	0.097	1.52	1.296	40,300	43,500	10,500	11,700	9,600
	0.109	0.104	1.62	1.282	42,900	46,200	11,000	12,200	10,400
	0.118	0.110	1.74	1.264	46,100	49,700	11,800	13,100	11,800
	0.125	0.117	1.84	1.250	48,600	52,400	12,600	14,000	13,000
	0.134	0.126	1.96	1.232	51,800	55,800	13,400	14,900	13,800
	0.145	0.137	2.10	1.210	55,600	59,900	14,600	16,200	15,000
	0.156	0.148	2.24	1.188	59,300	63,900	15,800	17,500	16,100
	0.175	0.167	2.48	1.500	65,600	70,700	17,300	19,200	17,600
	0.188	0.180	2.64	1.124	69,700	75,200	17,500	20,500	18,700
	0.204	0.196	2.83	1.092	74,800	80,600	17,500	22,200	20,200
1.750	0.095	0.090	1.68	1.560	44,500	47,900	8,300	9,200	5,700
	0.102	0.097	1.80	1.546	47,500	51,200	9,000	10,000	7,000
	0.109	0.104	1.91	1.532	50,600	54,500	9,400	10,400	7,600
	0.118	0.110	2.06	1.514	54,400	58,700	10,100	11,200	8,900
	0.125	0.117	2.17	1.500	57,400	61,900	10,800	12,000	10,100
	0.134	0.126	2.31	1.482	61,200	66,000	11,500	12,800	11,400
	0.145	0.137	2.49	1.460	65,800	70,900	12,500	13,900	13,000
	0.156	0.148	2.66	1.438	70,300	75,800	13,600	15,100	14,000
	0.175	0.167	2.95	1.400	77,900	84,000	14,900	16,600	15,400
	0.188	0.180	3.14	1.374	83,000	89,500	15,900	17,700	16,300
	0.204	0.196	3.37	1.342	89,200	96,100	17,300	19,200	17,600
	0.224	0.216	3.65	1.302	96,600	104,200	17,500	21,100	19,200
	0.250	0.242	4.01	1.250	106,000	114,300	17,500	23,500	21,300
2.000	0.109	0.104	2.20	1.782	58,300	62,800	8,300	9,200	5,600
	0.118	0.110	2.37	1.764	62,800	67,700	8,900	9,900	6,700
	0.125	0.117	2.51	1.750	66,300	71,400	9,500	10,600	7,800
	0.134	0.126	2.67	1.732	70,700	76,200	10,100	11,200	8,900
	0.145	0.137	2.88	1.710	76,100	82,000	11,100	12,300	10,500
	0.156	0.148	3.08	1.688	81,300	87,700	12,000	13,300	12,200
	0.175	0.167	3.41	1.650	90,300	97,300	13,100	14,600	13,600
	0.188	0.176	3.64	1.624	96,300	103,800	14,000	15,600	14,500
	0.204	0.192	3.92	1.592	103,600	111,600	15,300	17,000	15,700
	0.224	0.212	4.25	1.552	112,500	121,200	16,700	18,600	17,100
	0.250	0.238	4.68	1.500	123,700	133,300	17,500	20,800	19,000
	0.276	0.261	5.09	1.448	134,500	145,000	17,500	22,400	20,300
	0.281	0.266	5.16	1.438	136,600	147,200	17,500	22,700	20,600


ST90 2.375 in to 3.5 in

Outside Diameter	Wall Thickness		Mass Per Unit Length	Nominal Inside Diameter	Tube Body Load		Min Hydro Test Pressure	Min. Internal Yield Pressure	Collapse Pressure
	Specified	Min
OD	t	t min	wpe	ID	Min. Yield Strength	Min. Tensile Strength
in	in	in	lbs/ft	in	lbs	lbs	psig	psig	psig
2.375	0.109	0.104	2.64	2.157	69,800	75,300	6,900	7,700	3,600
	0.118	0.110	2.85	2.139	75,300	81,200	7,500	8,300	4,300
	0.125	0.117	3.01	2.125	79,500	85,700	8,000	8,900	5,200
	0.134	0.126	3.21	2.107	84,900	91,500	8,600	9,500	6,100
	0.145	0.137	3.46	2.085	91,400	98,500	9,400	10,400	7,500
	0.156	0.148	3.70	2.063	97,900	105,500	10,100	11,200	8,900
	0.175	0.167	4.12	2.025	108,900	117,300	11,200	12,400	10,700
	0.188	0.176	4.40	1.999	116,300	125,300	12,000	13,300	12,100
	0.204	0.192	4.73	1.967	125,200	135,000	13,000	14,400	13,400
	0.224	0.212	5.15	1.927	136,200	146,800	14,200	15,800	14,700
	0.250	0.238	5.68	1.875	150,200	161,900	16,000	17,800	16,300
	0.276	0.261	6.19	1.823	163,800	176,500	17,200	19,100	17,500
	0.281	0.266	6.29	1.813	166,400	179,300	17,500	19,400	17,800
	0.300	0.285	6.65	1.775	176,000	189,700	17,500	20,700	18,900
2.625	0.118	0.110	3.15	2.389	83,600	90,100	6,800	7,500	3,400
	0.125	0.117	3.33	2.375	88,400	95,200	7,300	8,100	4,000
	0.134	0.126	3.55	2.357	94,400	101,700	7,700	8,600	4,700
	0.145	0.137	3.84	2.335	101,700	109,600	8,500	9,400	5,900
	0.156	0.148	4.12	2.313	108,900	117,400	9,200	10,200	7,200
	0.175	0.167	4.58	2.275	121,200	130,700	10,100	11,200	8,900
	0.188	0.176	4.90	2.249	129,500	139,600	10,800	12,000	10,100
	0.204	0.192	5.28	2.217	139,600	150,500	11,800	13,100	11,800
	0.224	0.212	5.75	2.177	152,100	163,900	12,900	14,300	13,400
	0.250	0.238	6.35	2.125	167,900	180,900	14,500	16,100	14,900
	0.276	0.261	6.93	2.073	183,300	197,600	15,700	17,400	16,000
	0.281	0.266	7.04	2.063	186,200	200,700	15,800	17,600	16,200
	0.300	0.285	7.46	2.025	197,200	212,600	17,000	18,900	17,300
2.875	0.134	0.126	3.93	2.607	103,800	111,900	7,100	7,900	3,800
	0.145	0.137	4.23	2.585	111,900	120,600	7,700	8,600	4,700
	0.156	0.148	4.53	2.563	119,900	129,300	8,400	9,300	5,800
	0.175	0.167	5.05	2.525	133,600	144,000	9,300	10,300	7,400
	0.188	0.176	5.40	2.499	142,800	153,900	9,900	11,000	8,500
	0.204	0.192	5.82	2.467	154,100	166,000	10,800	12,000	10,000
	0.224	0.212	6.35	2.427	167,900	181,000	11,800	13,100	11,900
	0.250	0.238	7.02	2.375	185,600	200,000	13,300	14,800	13,800
	0.276	0.261	7.67	2.323	202,800	218,600	14,400	16,000	14,800
	0.281	0.266	7.79	2.313	206,100	222,100	14,600	16,200	15,000
	0.300	0.285	8.26	2.275	218,400	235,400	15,600	17,300	16,000
3.250	0.145	0.137	4.81	2.960	127,300	137,200	6,800	7,600	3,500
	0.156	0.148	5.16	2.938	136,500	147,100	7,500	8,300	4,100
	0.175	0.167	5.75	2.900	152,200	164,000	8,200	9,100	5,500
	0.188	0.176	6.15	2.874	162,800	175,400	8,700	9,700	6,500
	0.204	0.192	6.64	2.842	175,700	189,400	9,500	10,600	7,900
	0.224	0.212	7.25	2.802	191,700	206,600	10,400	11,600	9,500
	0.250	0.238	8.02	2.750	212,100	228,600	11,800	13,100	11,900
	0.276	0.261	8.77	2.698	232,100	250,100	12,800	14,200	13,200
	0.281	0.266	8.92	2.688	235,900	254,200	13,000	14,400	13,400
	0.300	0.285	9.46	2.650	250,200	269,700	13,900	15,400	14,300
3.500	0.156	0.148	5.58	3.188	147,500	159,000	6,900	7,700	3,600
	0.175	0.167	6.22	3.150	164,500	177,300	7,700	8,500	4,500
	0.188	0.176	6.66	3.124	176,100	189,700	8,200	9,100	5,400
	0.204	0.192	7.19	3.092	190,100	204,900	8,900	9,900	6,700
	0.224	0.212	7.84	3.052	207,500	223,600	9,700	10,800	8,300
	0.250	0.238	8.69	3.000	229,700	247,600	11,000	12,200	10,500
	0.276	0.261	9.51	2.948	251,600	271,200	11,900	13,200	12,000
	0.281	0.266	9.67	2.938	255,800	275,600	12,100	13,400	12,300
	0.300	0.285	10.26	2.900	271,400	292,500	13,000	14,400	13,400


ST100 0.75 in to 2.0 in

Outside Diameter	Wall Thickness		Mass Per Unit Length	Nominal Inside Diameter	Tube Body Load		Min Hydro Test Pressure	Min. Internal Yield Pressure	Collapse Pressure
	Specified	Min
OD	t	t min	wpe	ID	Min. Yield Strength	Min. Tensile Strength
in	in	in	lbs/ft	in	lbs	lbs	psig	psig	psig
0.750	0.080	0.075	0.57	0.590	16,800	18,200	17,500	19,500	17,900
	0.083	0.078	0.59	0.584	17,400	18,800	17,500	20,400	18,800
	0.087	0.082	0.62	0.576	18,100	19,600	17,500	21,400	19,600
	0.095	0.090	0.67	0.560	19,500	21,100	17,500	23,300	21,200
	0.102	0.097	0.71	0.546	20,800	22,400	17,500	25,100	22,800
	0.109	0.104	0.75	0.532	21,400	23,700	17,500	26,000	23,500
	0.118	0.110	0.80	0.514	23,400	25,300	17,500	27,800	25,100
1.000	0.075	0.070	0.74	0.850	21,800	23,500	12,600	14,000	12,000
	0.080	0.075	0.79	0.840	23,100	25,500	13,300	14,800	13,300
	0.083	0.078	0.81	0.834	23,900	25,800	14,000	15,500	14,500
	0.087	0.082	0.85	0.826	25,000	27,000	14,700	16,300	15,200
	0.095	0.090	0.92	0.810	27,000	29,200	15,900	17,700	16,500
	0.102	0.097	0.98	0.796	28,800	31,100	17,300	19,200	17,700
	0.109	0.104	1.04	0.782	30,500	33,000	17,500	20,000	18,400
	0.118	0.110	1.11	0.764	32,700	35,300	17,500	21,400	19,600
	0.125	0.117	1.17	0.750	34,400	37,100	17,500	22,800	20,800
	0.134	0.126	1.24	0.732	36,500	39,400	17,500	24,200	22,000
1.250	0.075	0.070	0.94	1.100	27,700	29,900	10,100	11,200	7,600
	0.080	0.075	1.00	1.090	29,400	31,800	10,700	11,900	8,500
	0.087	0.082	1.08	1.076	31,800	34,400	11,800	13,100	10,500
	0.095	0.090	1.17	1.060	34,500	37,200	12,900	14,300	12,500
	0.102	0.097	1.25	1.046	36,800	39,700	14,000	15,500	14,500
	0.109	0.104	1.33	1.032	39,100	42,200	14,500	16,100	15,000
	0.118	0.110	1.43	1.014	42,000	45,300	15,600	17,300	16,000
	0.125	0.117	1.50	1.000	44,200	47,700	16,700	18,500	17,100
	0.134	0.126	1.60	0.982	47,000	50,700	17,500	19,600	18,100
	0.145	0.137	1.71	0.960	50,300	54,400	17,500	21,400	19,600
	0.156	0.148	1.82	0.938	53,600	57,900	17,500	23,100	21,000
	0.175	0.167	2.01	0.900	59,100	63,800	17,500	25,300	22,900
1.500	0.087	0.082	1.31	1.326	38,600	41,700	9,800	10,900	7,100
	0.095	0.090	1.43	1.310	41,900	45,300	10,800	12,000	8,700
	0.102	0.097	1.52	1.296	44,800	48,400	11,700	13,000	10,400
	0.109	0.104	1.62	1.282	47,600	51,400	12,200	13,500	11,200
	0.118	0.110	1.74	1.264	51,200	55,300	13,100	14,500	12,800
	0.125	0.117	1.84	1.250	54,000	58,300	14,000	15,500	14,500
	0.134	0.126	1.96	1.232	57,500	62,100	14,900	16,500	15,400
	0.145	0.137	2.10	1.210	61,700	66,700	16,200	18,000	16,700
	0.156	0.148	2.24	1.188	65,900	71,100	17,500	19,500	17,900
	0.175	0.167	2.48	1.150	72,800	78,700	17,500	21,400	19,600
	0.188	0.180	2.64	1.124	77,500	83,700	17,500	22,800	20,800
	0.204	0.196	2.83	1.092	83,100	89,700	17,500	24,700	22,400
1.750	0.095	0.090	1.68	1.560	49,400	53,300	9,300	10,300	6,000
	0.102	0.097	1.80	1.546	52,800	57,000	10,100	11,200	7,400
	0.109	0.104	1.91	1.532	56,200	60,700	10,400	11,600	8,100
	0.118	0.110	2.06	1.514	60,500	65,300	11,300	12,500	9,500
	0.125	0.117	2.17	1.500	63,800	68,900	12,000	13,300	10,900
	0.134	0.126	2.31	1.482	68,000	73,500	12,800	14,200	12,400
	0.145	0.137	2.49	1.460	73,100	79,000	14,000	15,500	14,500
	0.156	0.148	2.66	1.438	78,100	84,400	15,100	16,800	15,600
	0.175	0.167	2.95	1.400	86,600	93,500	16,700	18,500	17,100
	0.188	0.180	3.14	1.374	92,300	99,600	17,500	19,700	18,200
	0.204	0.196	3.37	1.342	99,100	107,000	17,500	21,400	19,600
	0.224	0.216	3.65	1.302	107,400	116,000
