CONVEYING EQUIPMENT: U-Type Screw Conveyor
CONVEYING EQUIPMENT: U-Type Screw Conveyor

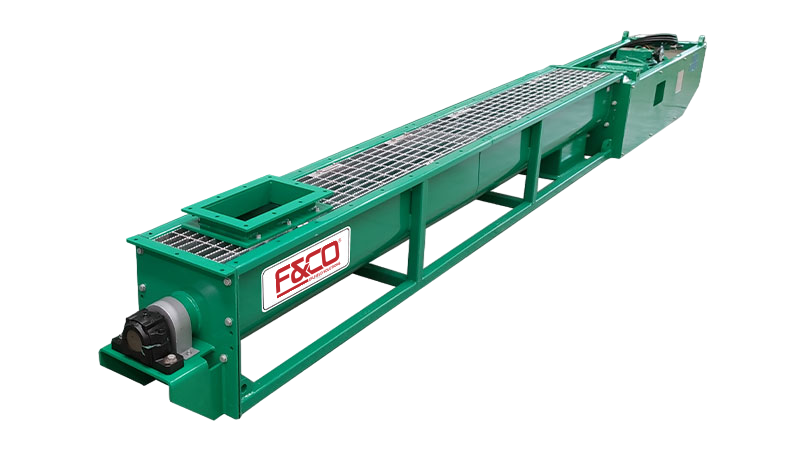

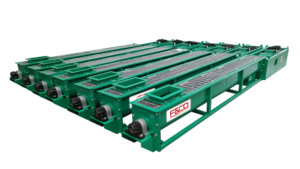

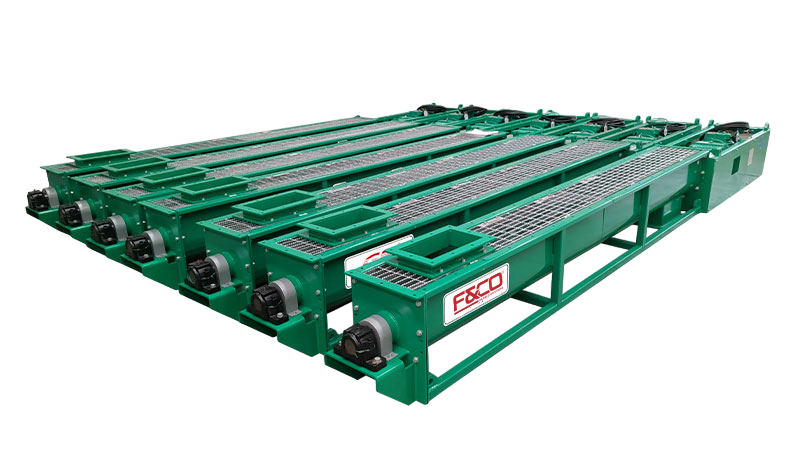

F&CO® by GN U-Type screw conveyor is performance proven industrial bulk material handling equipment for over 10 years. F&CO® by GN U-Type screw conveyors move wet or dry materials either horizontally, on an incline or vertically.
F&CO® by GN screw conveyors can be used to conveying material, feed material, distribute material, collect material or mixing material. Depends on different applications, with special cover and gasket, they can be made as dust free or weatherproof.
F&CO® by GN also provides customize U-Type screw conveyor with heat or cool while conveying material. F&CO® by GN screw conveyor design is clean and compact for less footprint and no return run is required. To make it easy to support and install, GN Screw Conveyors fit in robust cramped quarters. F&CO® by GN screw conveyor engineering team is available to solve your bulk material handling problems by offering customized design with ruggedly built and accurately manufactured conveyers.
GN U-TYPE SCREW CONVEYOR APPLICATIONS INDUSTRY:
- Environmental Waste management industry.
- Oil Gas Industry
- Construction bulk material handling
- Grain industry.
- Chemical and Pharmaceutical Engineering Industry.
- Mining Industry
- Food & Beverage Industry
- Power and metallurgy Plant
- Coal industry
GN U-TYPE SCREW CONVEYOR FEATURES AND BENEFITS:
- The Electrical specs is available for 380V/50Hz,415V/50HZ 460V/60Hz or Customized.
- Screw material wear-resisting 16Mn or hard facing or Stainless steel optional according to your application.
- Each section standard length and interchangeable, customized length is available.
- Gearbox and Motors, bearings are from famous brand.
- F&CO® partnership factory have the state of art machinery to make the screw conveyor include Advanced CNC Machine, Lather cuttings machine, Robot welding machine etc.
- Good Lubrication: the middle bearing seat is equipped with a wear-resistant shaft sleeve and is equipped with a lubricating oil cup outside the shell. It is convenient to operate the inner sleeve of the shaft sleeve to be fully lubricated and prolong the service life.
- Diversified connection: the inlet and outlet are standardized as flange connection mode, and more diversified connection mode can be provided according to user requirements.
DATA SHEET
F&CO: CONVEYING EQUIPMENT: U-Type Screw Conveyor DESCRIPTION
| F&CO OILFIELD SOLUTIONS: U-TYPE SCREW CONVEYOR (AUGER) TECHNICAL PARAMETERS | |||||
| Model | Screw Diameter | Screw Length | Capacity | Motor Power | Screw Speed |
| Inch/mm | Ft/m | (Tons/Hour) | (Kw) | (Rpm) | |
| GNSC10B-24 | 10/250 | 24/7.3 | 15 | 4(5.4HP) | 50-70 |
| GNSC10B-36 | 10/250 | 36/11 | 15 | 5.5(7.5HP) | |
| GNSC10B-48 | 10/250 | 48/14.6 | 15 | 7.5(10HP) | |
| GNSC12B-24 | 12/315 | 24/7.3 | 20 | 5.5(7.5HP) | 50-70 |
| GNSC12B-36 | 12/315 | 36/11 | 20 | 7.5(10HP) | |
| GNSC12B-48 | 12/315 | 48/14.6 | 20 | 11(15HP) | |
| GNSC14B-24 | 14/350 | 24/7.3 | 30 | 7.5(10HP) | 50-70 |
| GNSC14B-36 | 14/350 | 36/11 | 30 | 11(15HP) | |
| GNSC14B-48 | 14/350 | 48/14.6 | 30 | 15(20HP) | |
| GNSC16B-24 | 16/400 | 24/7.3 | 45 | 11(15HP) | 50-70 |
| GNSC16B-36 | 16/400 | 36/11 | 45 | 15(20HP) | |
| GNSC16B-48 | 16/400 | 48/14.6 | 45 | 18.5(25HP) | |
| GNSC18B-24 | 18/450 | 24/7.3 | 55 | 15(20HP) | 50-70 |
| GNSC18B-36 | 18/450 | 36/11 | 55 | 18.5(25HP) | |
| GNSC18B-48 | 18/450 | 48/14.6 | 55 | 22 (30HP) | |
| Remarks:According to clients requirement, GN Provide customized equipment. | |||||
| The above specification and parameters for reference only. |
