D-SANDER
D-SANDER

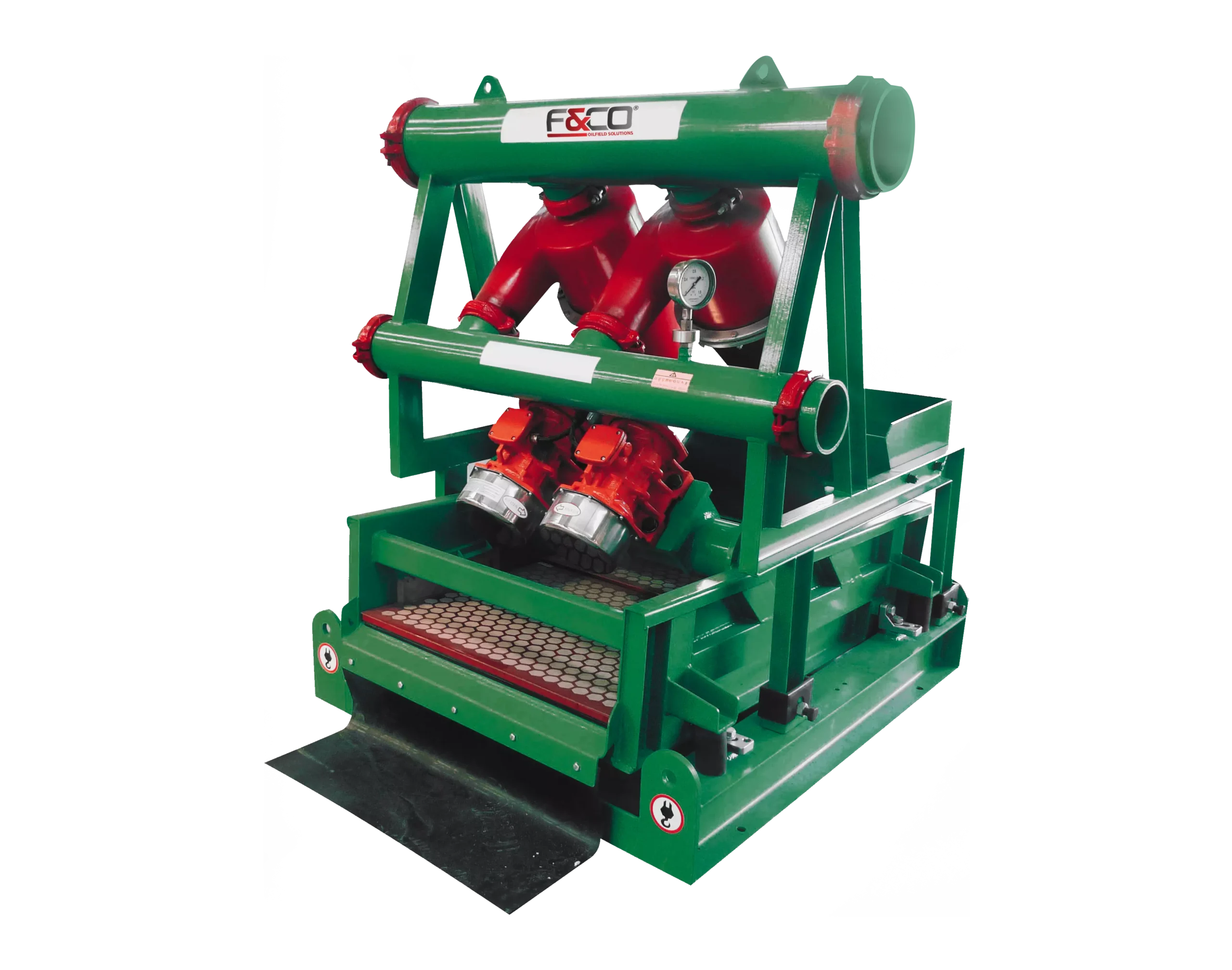

The sandblaster (D-Sander) is the solid control equipment used to eliminate sand that is integrated into the fluid during drilling. The sand trap that F&CO® OILFIELD SOLUTIONS distributes are 8″ and 10″ cones to separate solid phase particle size 47-76μm in drilling fluids, which provides greater cleanliness in the drilling fluid.
DATA SHEET
F&CO: D-SANDER DESCRIPTION
| F&CO OILFIELD SOLUTIONS D-SANDER | ||||||||||||||||||
| Sandblaster Model | Ability (m3/h) | Desilter Size (In) | Desilting Cones Quantity (Pzs) | Work pressure (Mpa) | Feed Size (in) | Output Size (in) | Bottom Shaker Specifications | Weight (kg) | Dimensions (mm) | |||||||||
| Temblorina Model | Vibration Type | Engine Vibration (Kw) | Mesh Quantity (pcs) | Mesh Size (mm) | Mesh Area (m2) | G Force (G's) | Vibration Amplitude (mm) | Cover Angle Range | EX Standard | |||||||||
| FCODSANSHLM200X22X10 | 120 / 240 (530 / 1100 gpm) | 10 | 1 - 2 | 0.25 - 0.4 | 6 | 8 | FCOSHLM200X2 | Linear Motion | 2 x 1.0 | 2 | 750 x 900 | 1.35 | ≤ 7.1G (Adjustable) | 3.92 ~ 5.62 | + 2° | ExdIIBt4 IECEX A-TEX | 1059 / 1114 | 1676 x 1754 x 1822 |
| FCODSANSHLM528X32X10 | 120 / 240 (530 / 1100 gpm) | 2 | FCOSHLM528X3 | 2 x 1.72 | 3 | 700 x 1250 | 2.63 | ≤ 7.1G (Adjustable) | 4.14 ~ 5.96 | - 1 ~ + 5° | 1835 | 2419 x 2131 x 1656 | ||||||
| FCODSANSHLM528X33X10 | 360 (1600 gpm) | 3 | 1924 | 2419 x 2135 x 2066 | ||||||||||||||

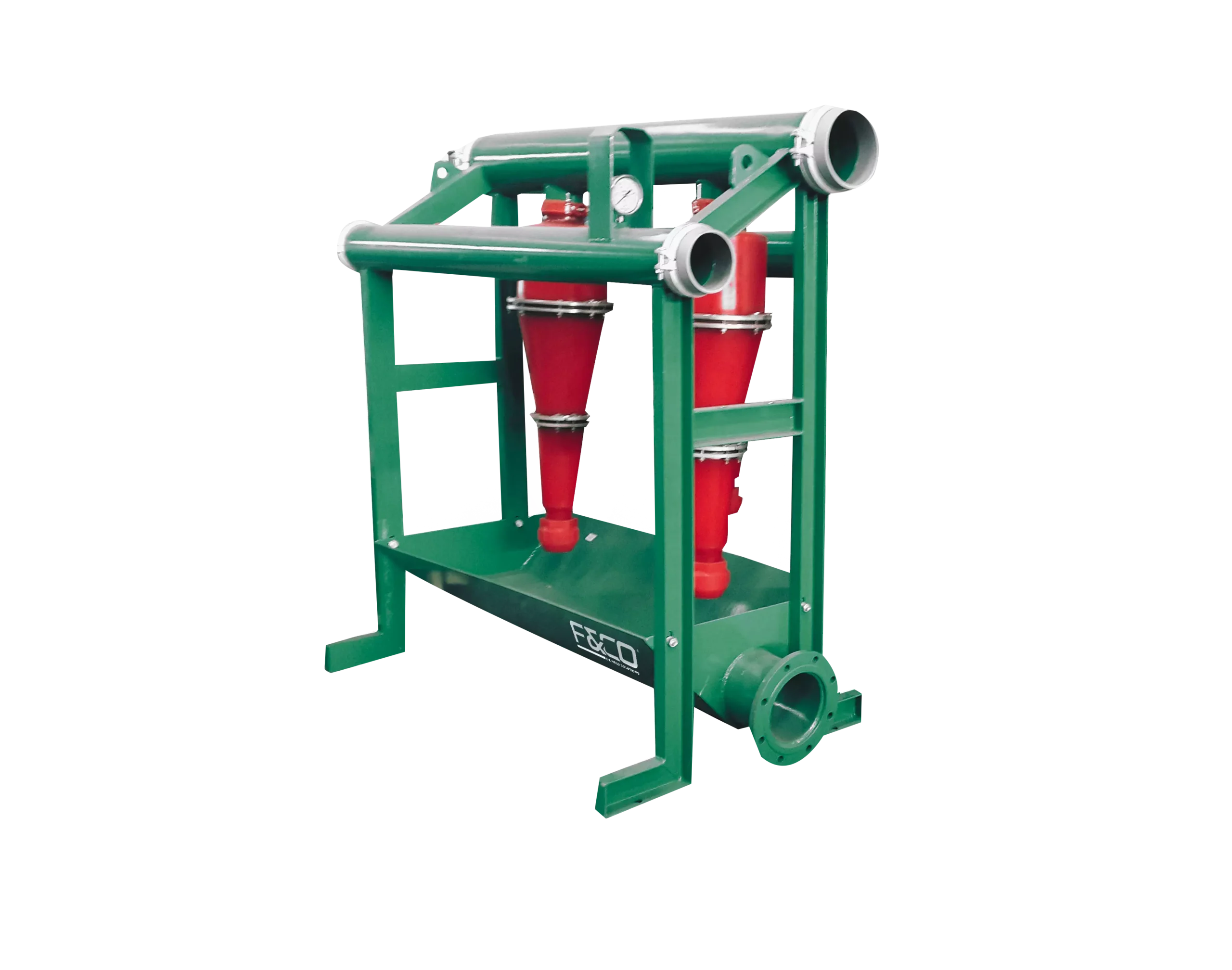

| FCODSAN3X10 | 240/360 (1100 / 1600 gpm) | 2 - 3 | NA | 502 / 559 | 2177 x 1000 x 1901 |
