Decanter Centrifuge
Decanter Centrifuge

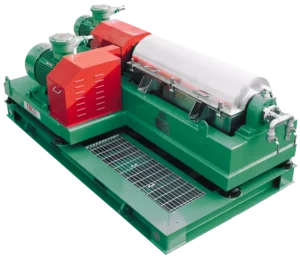

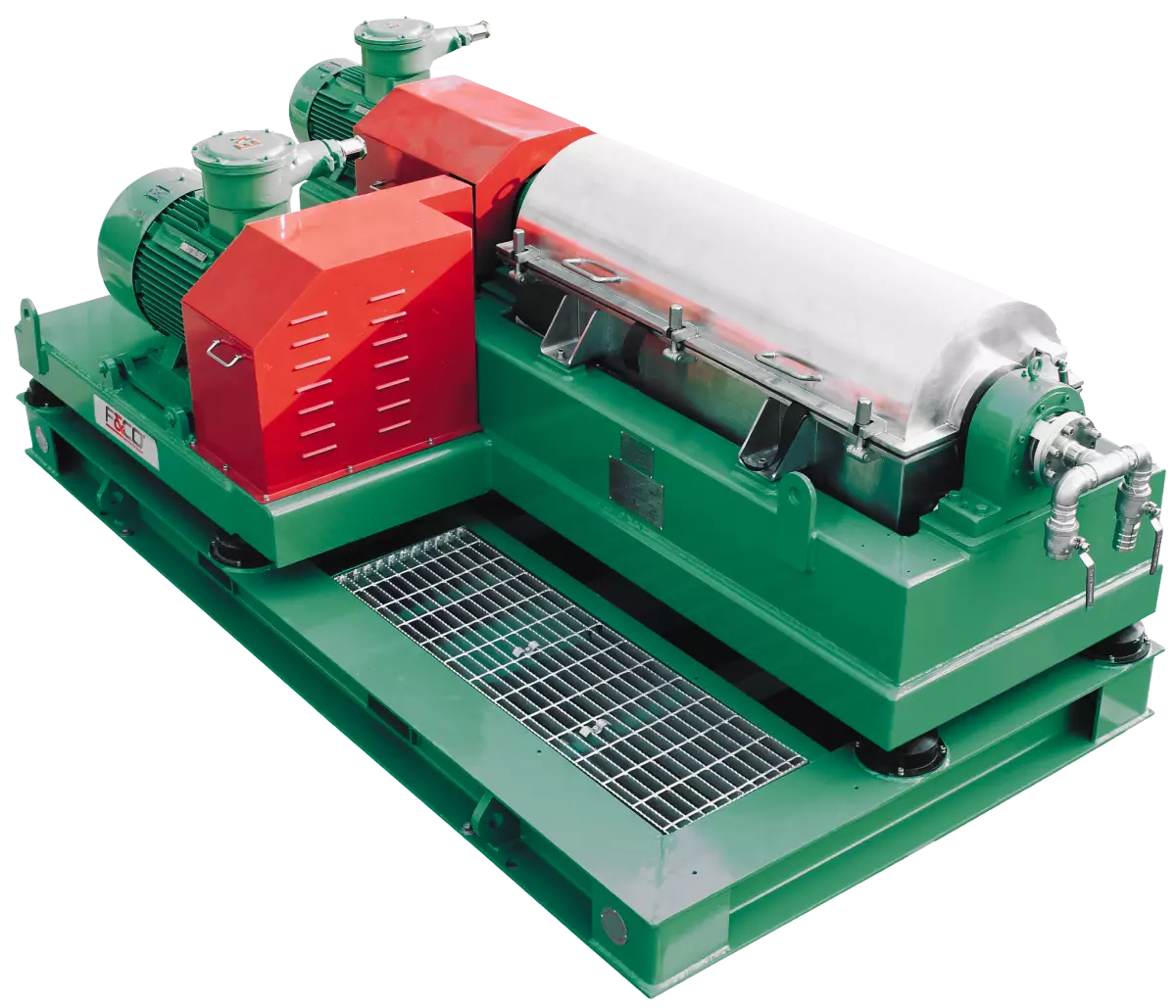

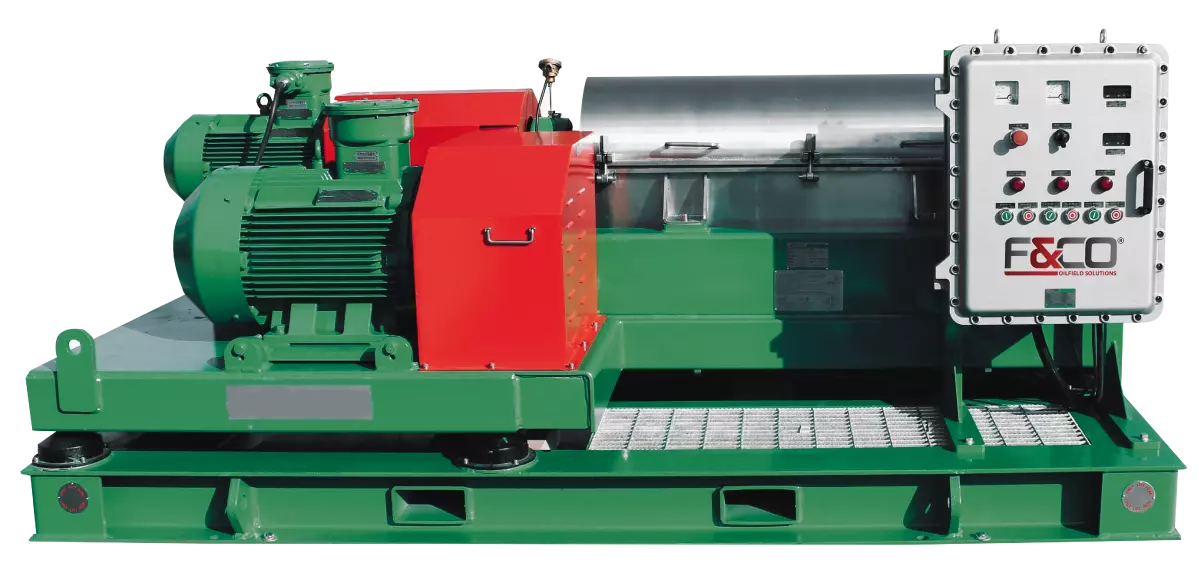

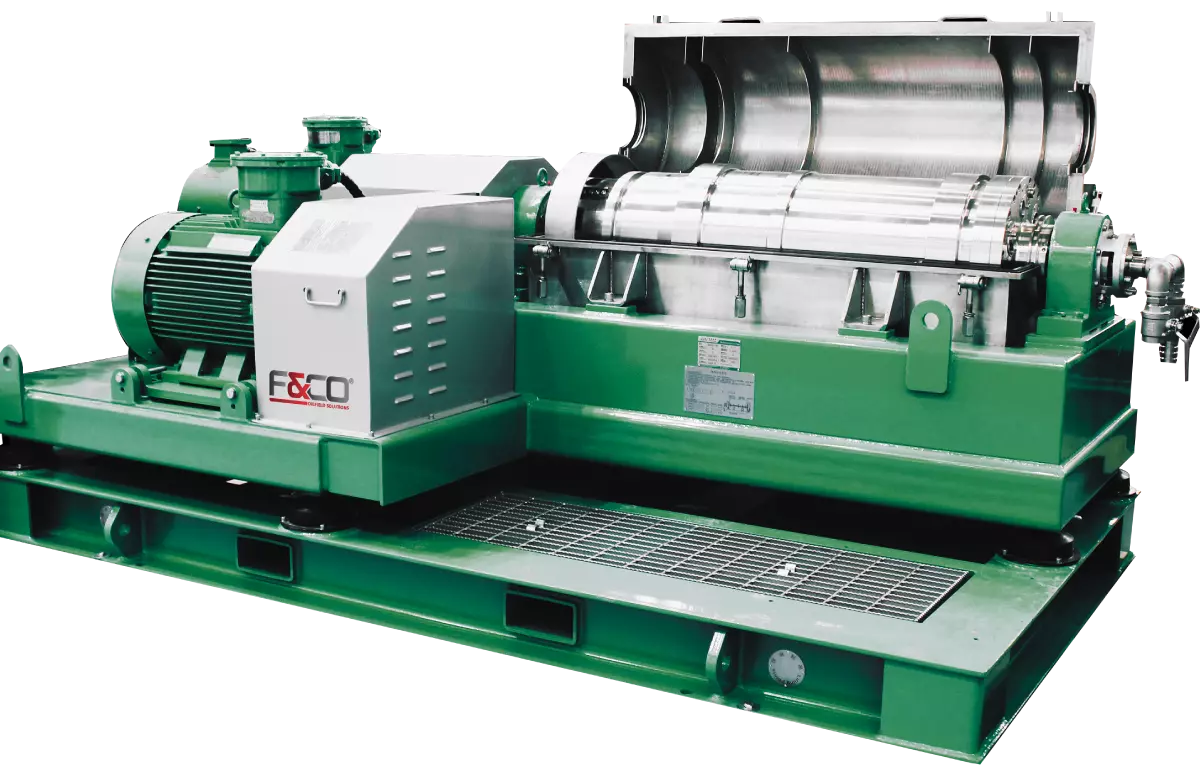

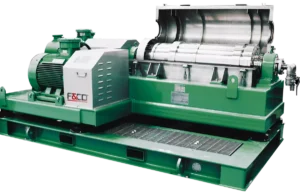

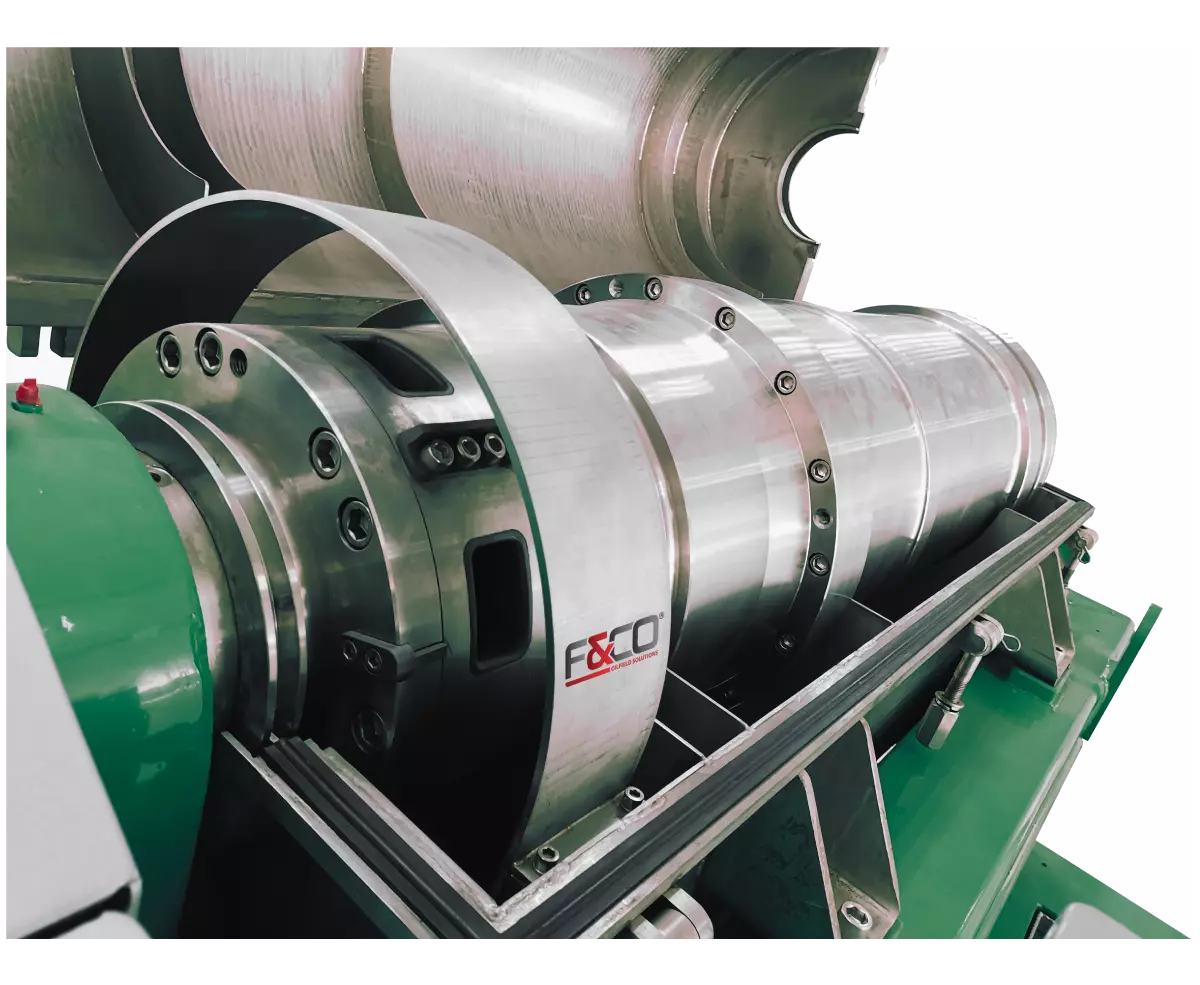

F&CO® distributes decanting centrifuges (Decanting Centrifuge) with different sizes of rotating bowls which can be 9 inches, 14 inches, 18 inches, 22 inches and 30 inches. The measures are in accordance with the intended treatment objective of the drilling fluid.
DATA SHEET
F&CO: 18´´ in DECANTER CENTRIFUGE DESCRIPTION
| F&CO OILFIELD SOLUTIONS 18´´ in DECANTER CENTRIFUGE | F&CO OILFIELD SOLUTIONS 18´´ in DECANTER CENTRIFUGE | F&CO OILFIELD SOLUTIONS 18´´ in DECANTER CENTRIFUGE | F&CO OILFIELD SOLUTIONS 18´´ in DECANTER CENTRIFUGE |
| Model | FCO452D | FCO453C-VFD | FCO454ET-VFD |
| Bowl Diameter (in) | 18 (450 mm) | 18 (450 mm) | 18 (450 mm) |
| Bowl Length (in) | 43.5 (1105 mm) | 61 (1540 mm) | 74.5 (1890 mm) |
| Designed Capacity (GPM) | 250 (57 m3/h) | 352 (80 m3/h) | 400 (90 m3/h) |
| Typical Capacity (GPM) | 176 (40 m3/h) | 264 (60 m3/h) | 300 (68 m3/h) |
| Max Bowl Speed (RPM) | 1800 | 3200 | 3500 |
| Typical Bowl Speed (RPM) | 1800 | 0 ~ 2800 | 0 ~ 3200 |
| Max G Force (G´s) | 815 | 2578 | 3084 |
| Typical G Force (G´s) | 815 | 0 ~ 1973 | 0 ~ 2578 |
| Cut Point (μm) | 5 ~ 7 | 2 ~ 5 | 2 ~ 5 |
| Differential Speed (RPM) | 32 | 0 ~ 45 | 0 ~ 45 |
| Gearbox Torch (N·M) | 3500 | 7500 | 7500 |
| Gearbox Ratio | 57 : 1 | 57 : 1 | 57 : 1 |
| Main Motor (KW) | 45 (60HP) | 55 (75HP) | 55 (75HP) |
| Back Drive Motor (KW) | N/A | 22 (30HP) | 22 (30HP) |
| Recommend Pump Motor (KW) | 11 (15HP) | 15 (20HP) | 15 (30HP) |
F&CO: 14´´ in DECANTER CENTRIFUGE DESCRIPTION
| F&CO OILFIELD SOLUTIONS 14´´ in DECANTER CENTRIFUGE | ||||
| Model | FCO363C | FCO363C-VFD | FCO363D-FHD | FCO364ET-VFD |
| Drive Mode | Fixed Speed | VFD | FHD | VFD |
| Bowl Diameter (in) | 14 (360mm) | 14 (360mm) | 14 (360mm) | 14 (360mm) |
| Bowl Length (in) | 50 (1271 mm) | 50 (1271 mm) | 50 (1271 mm) | 59.5 (1512 mm) |
| Designed Capacity (GPM) | 200 (45 m3/h) | 200 (45 m3/h) | 200 (45 m3/h) | 242 (55 m3/h) |
| Typical Capacity (GPM) | 132 (30 m3/h) | 132 (30 m3/h) | 132 (30 m3/h) | 154 (35 m3/h) |
| Max Bowl Speed (RPM) | 3900 | 3900 | 3900 | 3900 |
| Typical Bowl Speed (RPM) | 3200 | 0 ~ 3200 | 0 ~ 3200 | 0 ~ 3200 |
| Max G Force (G´s) | 3063 | 3063 | 3063 | 3063 |
| Typical G Force (G´s) | 2062 | 0 ~ 2062 | 0 ~ 2062 | 0 ~ 2062 |
| Cut Point (μm ) | 2 ~ 5μm | 2 ~ 5μm | 2 ~ 5μm | 2 ~ 5μm |
| Differential Speed (RPM) | 38 | 0 ~ 45 | 0 ~ 65 | 0 ~ 65 |
| Gearbox Torch (N·M ) | 3500 | 3500 | 3717 | 3500 |
| Gearbox Ratio | 57 : 1 | 57 : 1 | Hydraulic Gearbox | 57 : 1 |
| Main Motor (KW) | 37 (50HP) | 37 (50HP) | 45 (60HP) | 37 (50HP) |
| Back Drive Motor (KW) | 11 (15HP) | 11 (15HP) | N/A | 11 (15HP) |
| Recommend Pump Motor (KW) | 7.5 (11HP) | 7.5 (11HP) | 7.5 (11HP) | 7.5 (11HP) |
