D-SILTER
D-SILTER
The silter (D-Silter) is solids control equipment used to remove fine solids integrated into the fluid during drilling. The descaler that F&CO OILFIELD SOLUTIONS distributes are cones that are designed in 5″ and 4″ to separate the solid phase particle size of 15-47 μm in the fluid. Although we can manufacture the cones according to the customer’s needs.
DATA SHEET
F&CO: D-SILTER DESCRIPTION
| F&CO OILFIELS SOLUTIONS D-SILTER | ||||||||||||||||||
| Desciller Model | Ability (m3/h) | Desiccant Size (In) | Desciller Cones Quantity (Parts) | Work pressure (Mpa) | Feed Size (in) | Output Size (in) | Bottom Shaker Specifications | Weight (Kg) | Dimensions (mm) | |||||||||
| tremor model | Vibration Type | Vibration Motor (Kw) | Mesh Quantity (Parts) | Tights Size (mm) | Mesh Area (m2) | G Force (G´s) | Vibration Amplitude (mm) | Cover Angle Range | EX Standard | |||||||||

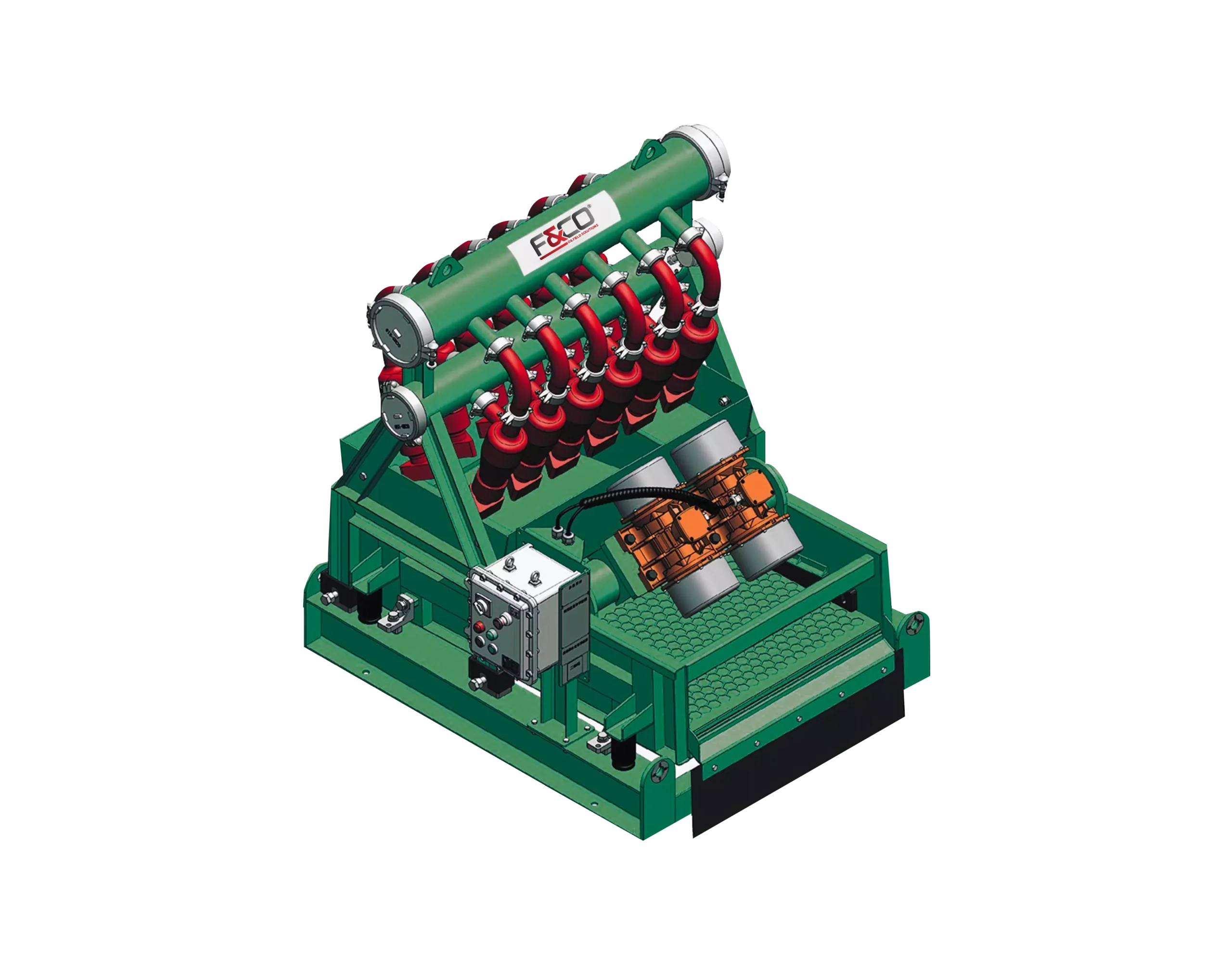

| FCODSILSHLM200X212X4 | 120/240 (528/1056 gpm) | 4 | 8 - 12 | 0.25 - 0.4 | 6 | 8 | FCOSHLM200X2 | Linear Motion | 2 x 1.0 | 2 | 750 x 900 | 1.35 | ≤ 7.1G (Adjustable) | 3.92 ~ 5.62 | + 2° | ExdIIBt4 IECEX A-TEX | 1057 / 1097 | 1676 x 1745 x 1719 |

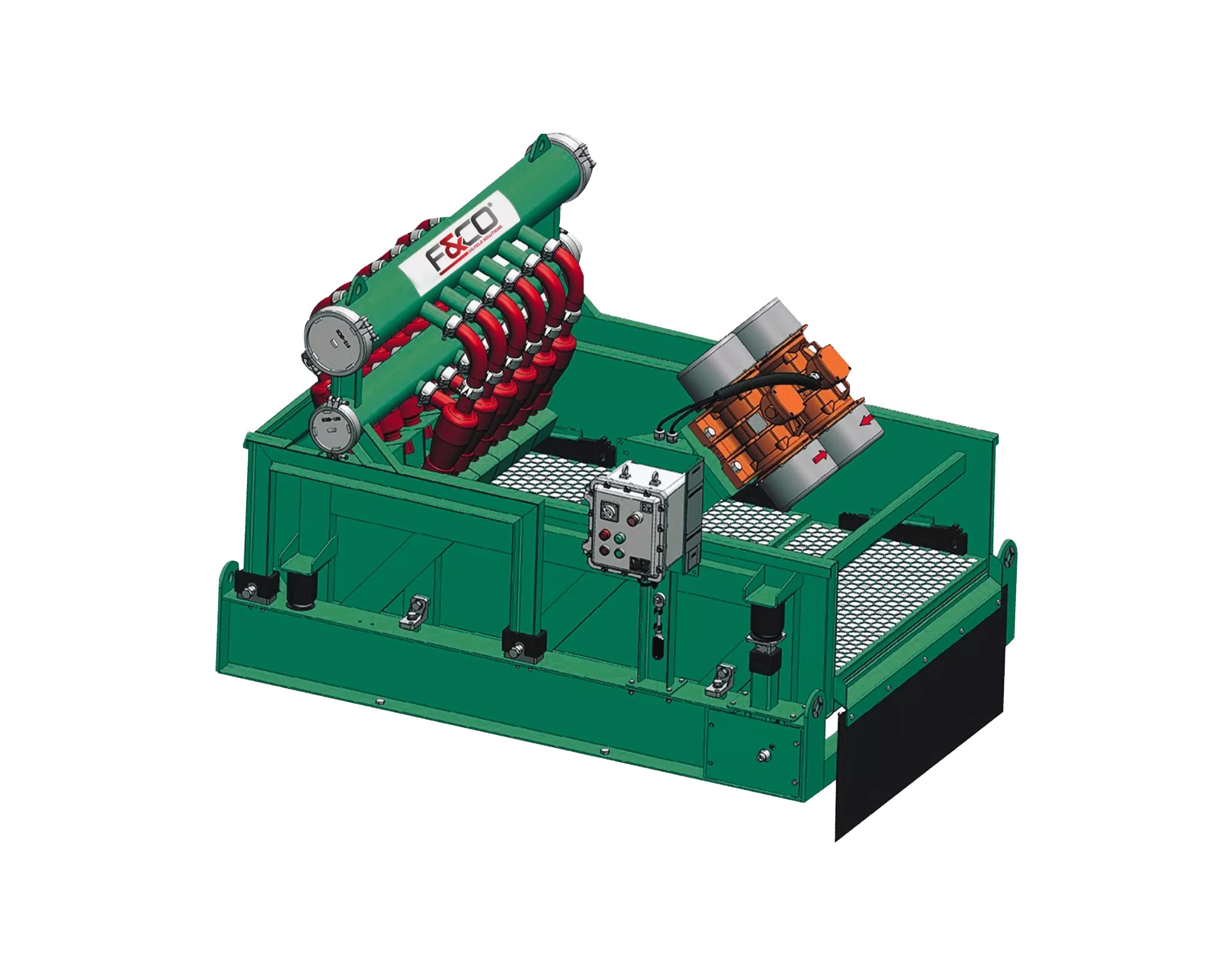

| FCODSILSHLM528X312X4 | 120/240 (528/1056 gpm) | FCOSHLM528X3 | 2 x 1.72 | 3 | 700 x 1250 | 2.63 | ≤ 7.5G (Adjustable) | 4.14 ~ 5.96 | - 1 ~ + 5° | 1813 / 1839 | 2419 x 2150 x 1608 | |||||||
| FCODSILSHLM528X316X4 | 360 (1584 gpm) | 16 | 1974 | 2419 x 2150 x 2126 | ||||||||||||||

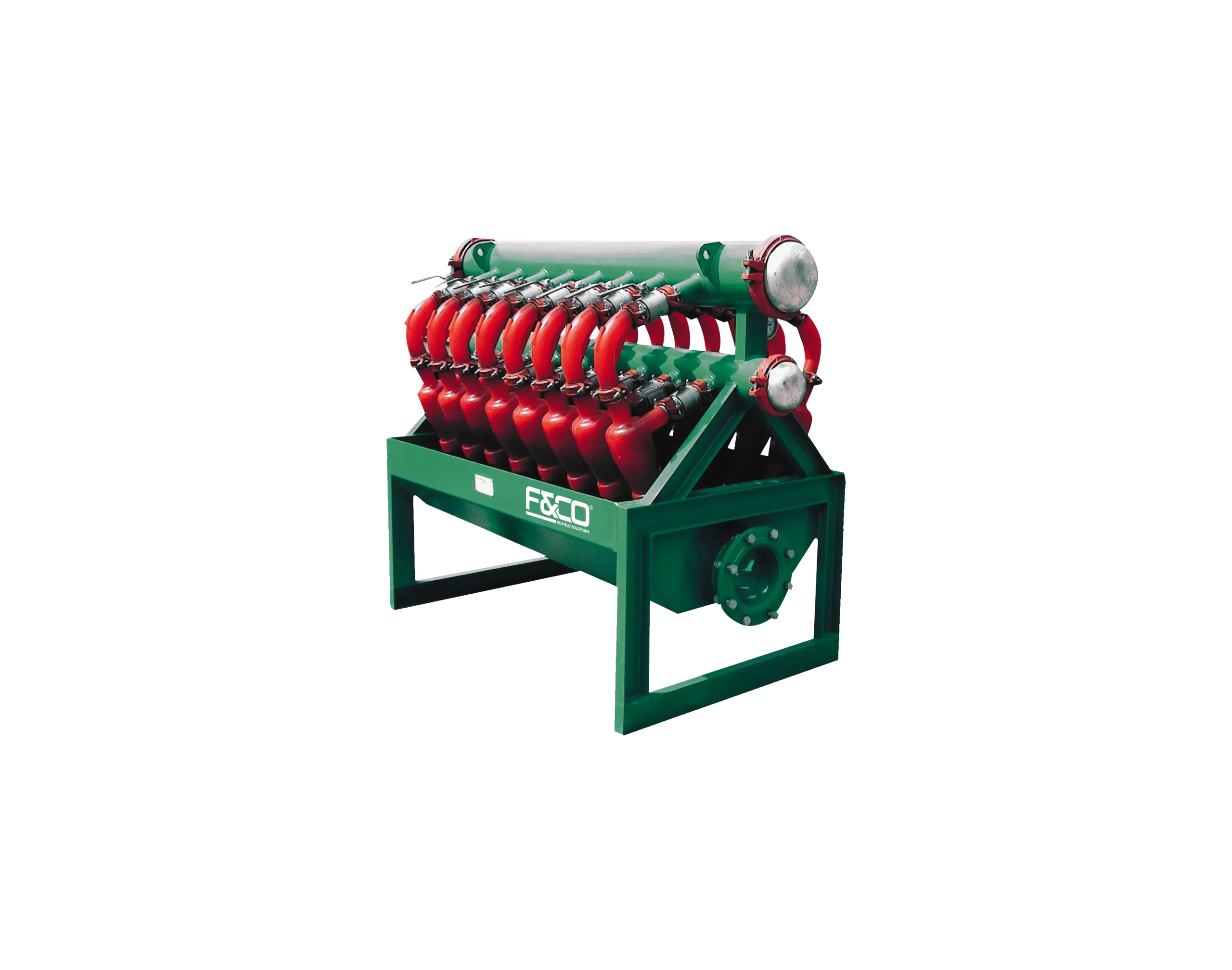

| FCODSIL16X4 | 240/360 (1056/1584 gpm) | 12 - 16 | NA | 504 / 539 | 2189 x 900 x 1511 |
