ELECTRICAL MOTOR AC AND DC DRILLING MOTORS FOR SCR AND VFD
ELECTRICAL MOTOR AC AND DC DRILLING MOTORS FOR SCR AND VFD

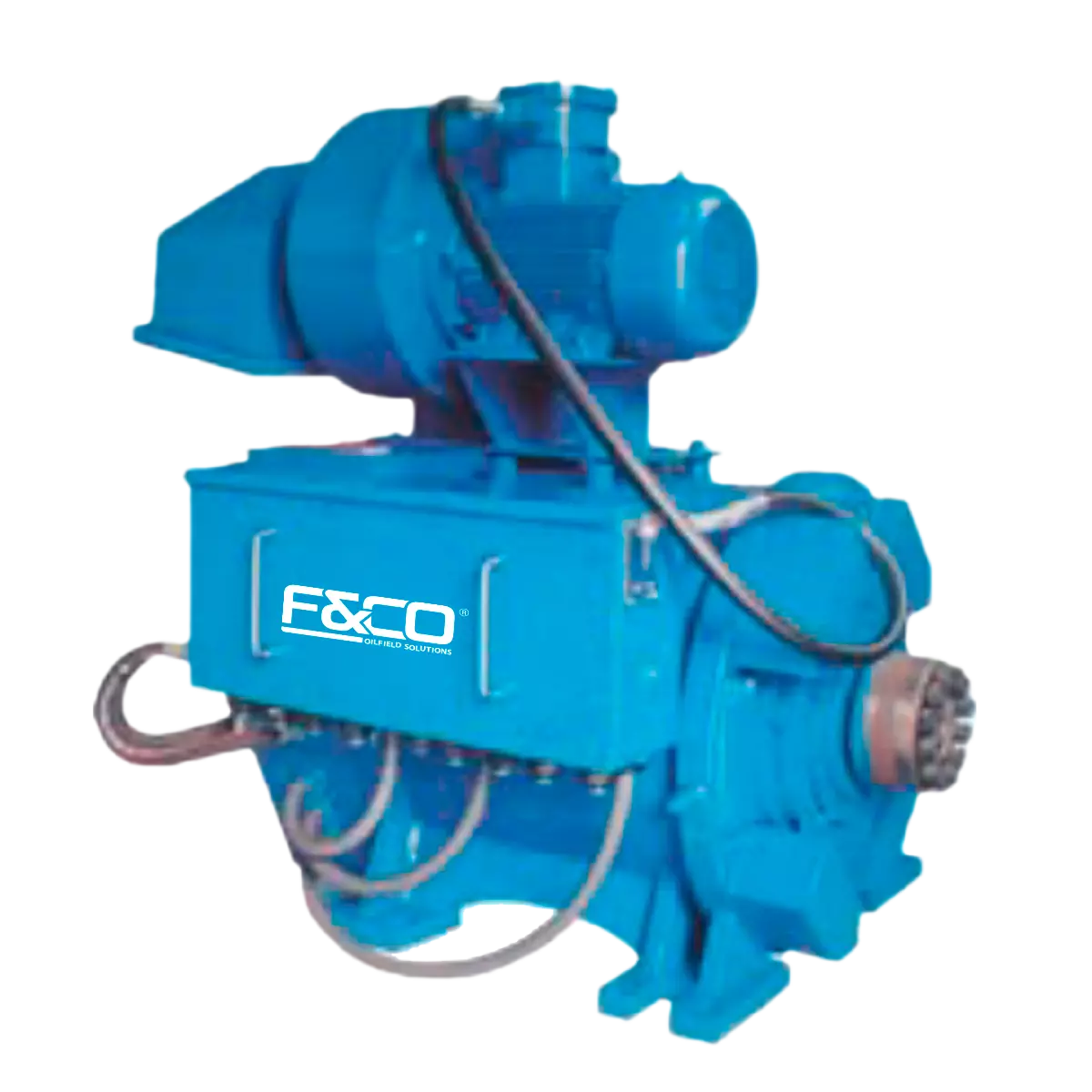

F&CO® OILFIELD SOLUTIONS supply a full line of AC and DC drilling motors for SCR and VFD electric drilling rigs. The models we are handling are SDM-800DC DC drilling motor is an identical match of GE752 traction motor. It has the same footprint and is interchangeable with it. Our AC drilling motors are similar with GEB22 drilling motors but with more models and options. The typical application of our traction motors in drilling industry includes mud pumps, drawworks, and rotary tables.
DATA SHEET
F&CO: ELECTRICAL MOTOR AC AND DC DRILLING MOTORS FOR SCR AND VFD DESCRIPTION
| F&CO OILFIELD SOLUTIONS DRILLING ENGINES | ||||
| Model | SDM-800 DC | SDM-600 AC | SDM-800 AC | SDM-1200 AC |
| Type | DC | AC | AC | AC |
| Application | Mud Pump Drawworks Rotary Table | Mud Pump Drawworks Rotary Table | Mud Pump Drawworks Rotary Table | Mud Pump Drawworks Rotary Table |
| Maximum Continuous HP1,085 | 800 | 1085 | 1600 | |
| Full Load RPM | 965 | 660 | 740 | 1000 |
| Full Load Current1,150 | 715 | 915 | 1355 | |
| Voltage | 750 vdc | 600 vac | 600 vac | 600 vac |
