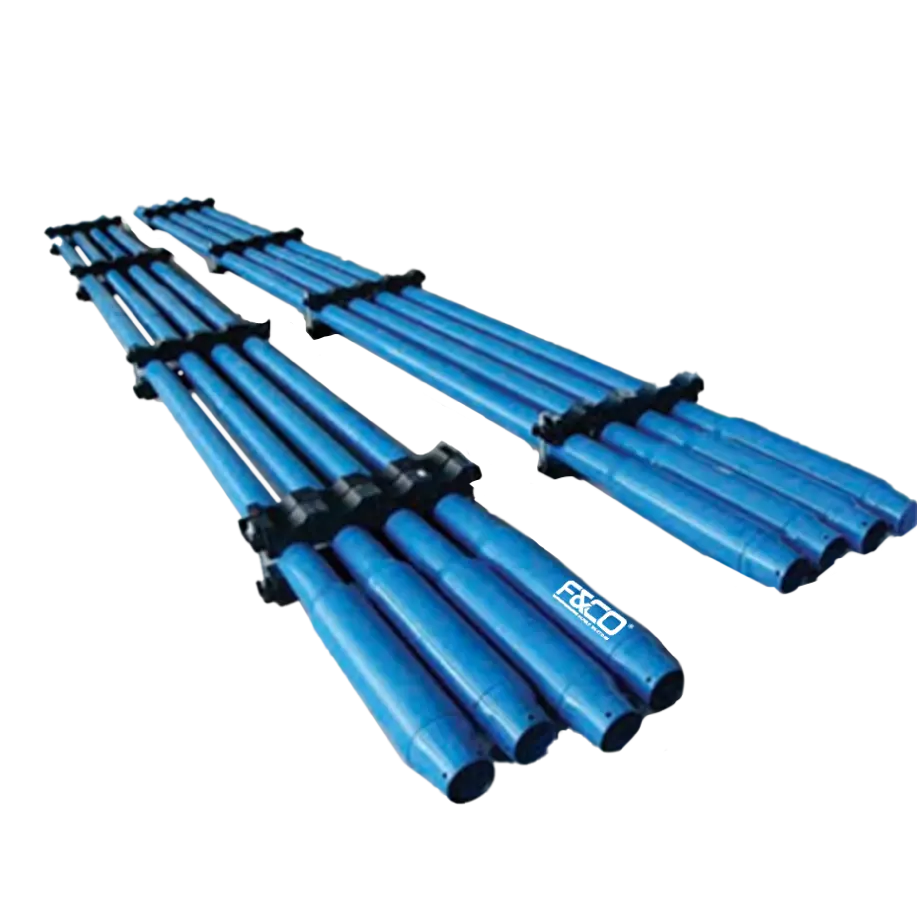

HEAVY WEIGHT DRILL PIPES
HEAVY WEIGHT DRILL PIPES
Our welded and integral heavy weight drill pipes has different sizes.
Their sizes are from 3-1/2 to 6-5/8 inches.
DATA SHEET
F&CO: HEAVY WEIGHT DRILL PIPE
| F&CO OILFIELD SOLUTIONS: TUBERIA DE PERFORACIÓN PESADA | |||||
| Outside Diameter, in. | Inside Diameter, in. | Connection | Tool Joint OD , in. | Tool Joint ID, in. | Center Upset Diameter, in. |
| 3-1/2 | 2-1/4 2-1/16 | NC38 | 4-3/4 (4-7/8, 5) | 2-1/4 2-1/16 | 4 |
| 4 | 2-1/2 2-9/16 | NC40 | 5-1/4 | 2-1/2 2-9/16 | 4-1/2 |
| 4-1/2 | 2-11/16 | NC46 | 6-1/4 | 2-11/16 | 5 |
| 2-3/4 | 2-3/4 | ||||
| 2-13/16 | 2-13/16 | ||||
| 5 | 3 | NC50 | 6-5/8 | 3 | 5-1/2 |
| 5-1/2 | 3-1/4 | 5-1/2FH | 7 (7-1/4, 7-1/2) | 3-1/4 | 6 |
| 3-3/8 | 3-3/8 | ||||
| 3-7/8 4 | 3-7/8 4 | ||||
| 4 | 4 | ||||
| 6-5/8 | 4-1/2 | 6-5/8FH | 8 (8-1/4, 8-1/2) | 4-1/2 | 7-1/8 |
| 5 | 5 | ||||
| *For both integral and welded heavy weight drill pipes. |
