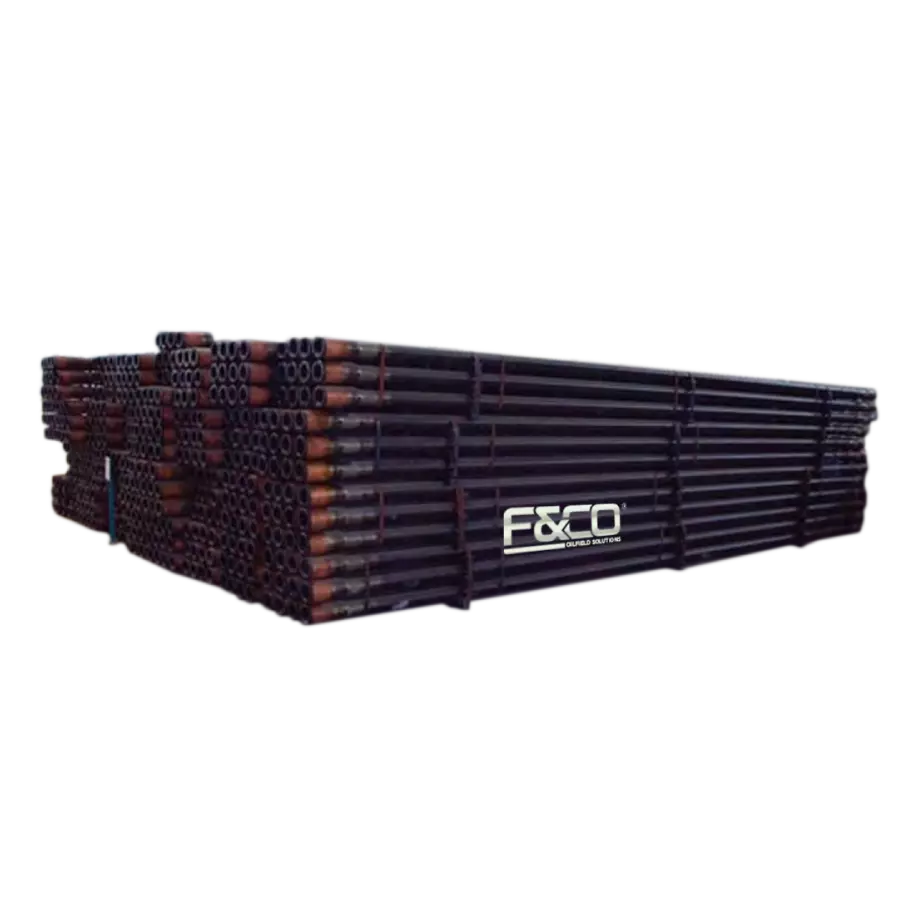

DRILL PIPE TUBULAR

DRILL PIPE

At F&CO® OILFIELD SOLUTIONS, our tubular drill pipe comes in 8 different sizes.

DATA SHEET

F&CO: DRILL PIPE TUBULAR


F&CO OILFIELD SOLUTIONS: PERFORATING PIPE
PIPE					TOOL JOINT
SIZE OD, in.	Nominal Weight, lb/ft.	Upset type.	Grade	Wall Thickness, in.	ID, in.	Connection Type	OD, in.	ID, in.	Pin Tong Space*, in.	Box Tong Space*, in.
´ 2-3/08	6.65	EU	E-75	0.280	1.815	NC26	3-3/8	1-3/4	9	10
			X-95	0.280	1.815	NC26	3-3/8	1-3/4	9	10
			G-105	0.280	1.815	NC26	3-3/8	1-3/4	9	10
			S-135	0.280	1.815	NC26	3-5/8	1-3/4	9	10
	10.4	EU	E-75	0.362	2.151	NC31	4-1/8	2-1/8	9	11
			X-95	0.362	2.151	NC31	4-1/8	2	9	11
			G-105	0.362	2.151	NC31	4-1/8	2	9	11
			S-135	0.362	2.151	NC31	4-3/8	1-5/8	9	11
´ 3-1/2	13.3	EU	E-75	0.368	2.764	NC38	4-3/4	2-11/16	10	12-1/2
			X-95	0.368	2.764	NC38	5	2-9/16	10	12-1/2
			G-105	0.368	2.764	NC38	5	2-7/16	10	12-1/2
			S-135	0.368	2.764	NC38	5	2-1/8	10	12-1/2
	15.5	EU	E-75	0.449	2.602	NC38	5	2-9/16	10	12-1/2
			X-95	0.449	2.602	NC38	5	2-7/16	10	12-1/2
			G-105	0.449	2.602	NC38	5	2-1/8	10	12-1/2
			S-135	0.449	2.602	NC40	5-1/2	2-1/4	9	12


PIPE					TOOL JOINT
SIZE OD, in.	Nominal Weight, lb/ft.	Upset type.	Grade	Wall Thickness, in.	ID, in.	Connection Type	OD, in.	ID, in.	Pin Tong Space*, in.	Box Tong Space*, in.
4	14	IU	E-75	0.33	3.34	NC40	5-1/4	2-13/16	9	12
			X-95	0.33	3.34	NC40	5-1/4	2-11/16	9	12
			G-105	0.33	3.34	NC40	5-1/2	2-7/16	9	12
			S-135	0.33	3.34	NC40	5-1/2	2-7/16	9	12
		EU	E-75	0.33	3.34	NC46	6	3-1/4	9	12
			X-95	0.33	3.34	NC46	6	3-1/4	9	12
			G-105	0.33	3.34	NC46	6	3-1/4	9	12
			S-135	0.33	3.34	NC46	6	3	9	12
	15.7	IU	E-75	0.38	3.24	NC40	5-1/4	2-11/16	9	12
			X-95	0.38	3.24	NC40	5-1/4	2-7/16	9	12
			G-105	0.38	3.24	NC40	5-1/2	2-7/16	9	12
			S-135	0.38	3.24	NC40	5-1/2	2	9	12
		EU	E-75	0.38	3.24	NC46	6	3-1/4	9	12
			X-95	0.38	3.24	NC46	6	3-1/4	9	12
			G-105	0.38	3.24	NC46	6	3-1/4	9	12
			S-135	0.38	3.24	NC46	6	3	9	12
´ 4-1/2	16.6	IUE	E-75	0.337	3.826	NC46	6-1/4	3	9	12
			X-95	0.337	3.826	NC46	6-1/4	3-1/4	9	12
			G-105	0.337	3.826	NC46	6-1/4	3	9	12
			S-135	0.337	3.826	NC46	6-1/4	2-3/4	9	12
		EU	E-75	0.337	3.826	NC50	6-5/8	3-3/4	9	12
			X-95	0.337	3.826	NC50	6-5/8	3-3/4	9	12
			G-105	0.337	3.826	NC50	6-5/8	3-3/4	9	12
			S-135	0.337	3.826	NC50	6-5/8	3-1/2	9	12
	20	IUE	E-75	0.43	3.64	NC46	6-1/4	3	9	12
			X-95	0.43	3.64	NC46	6-1/4	2-3/4	9	12
			G-105	0.43	3.64	NC46	6-1/4	2-1/2	9	12
			S-135	0.43	3.64	NC46	6-1/4	2-1/4	9	12
		EU	E-75	0.43	3.64	NC50	6-5/8	3-5/8	9	12
			X-95	0.43	3.64	NC50	6-5/8	3-1/2	9	12
			G-105	0.43	3.64	NC50	6-5/8	3-1/2	9	12
			S-135	0.43	3.64	NC50	6-5/8	3	9	12
5	19.5	IEU	E-75	0.362	4.276	NC50	6-5/8	3-3/4	9	12
			X-95	0.362	4.276	NC50	6-5/8	3-1/2	9	12
			G-105	0.362	4.276	NC50	6-5/8	3-1/4	9	12
			S-135	0.362	4.276	NC50	6-5/8	2-3/4	9	12
			E-75	0.362	4.276	5-1/2 FH	7	3-3/4	10	12
			X-95	0.362	4.276	5-1/2 FH	7	3-3/4	10	12
			G-105	0.362	4.276	5-1/2 FH	7	3-3/4	10	12
			S-135	0.362	4.276	5-1/2 FH	7-1/4	3-1/2	10	12
	25.6	IEU	E-75	0.5	4	NC50	6-5/8	3-1/2	9	12
			X-95	0.5	4	NC50	6-5/8	3	9	12
			G-105	0.5	4	NC50	6-5/8	2-3/4	9	12
			S-135	0.5	4	NC50	6-5/8	2-3/4	9	12
			E-75	0.5	4	5-1/2 FH	7	3-1/2	10	12
			X-95	0.5	4	5-1/2 FH	7	3-1/2	10	12
			G-105	0.5	4	5-1/2 FH	7-1/4	3-1/2	10	12
			S-135	0.5	4	5-1/2 FH	7-1/4	3-1/4	10	12
´ 5-1/2	21.9	IEU	E-75	0.361	4.778	5-1/2 FH	7	4	10	12
			X-95	0.361	4.778	5-1/2 FH	7	3-3/4	10	12
			G-105	0.361	4.778	5-1/2 FH	7-1/4	3-1/2	10	12
			S-135	0.361	4.778	5-1/2 FH	7-1/2	3	10	12
	24.7	IEU	E-75	0.415	4.67	5-1/2 FH	7	4	10	12
			X-95	0.415	4.67	5-1/2 FH	7-1/4	3-1/2	10	12
			G-105	0.415	4.67	5-1/2 FH	7-1/4	3-1/2	10	12
			S-135	0.415	4.67	5-1/2 FH	7-1/2	3	10	12
´ 6-5/8	25.2	IEU	E-75	0.33	5.965	6-5/8 FH	8	5	10	13
			X-95	0.33	5.965	6-5/8 FH	8	5	10	13
			G-105	0.33	5.965	6-5/8 FH	8-1/4	4-3/4	10	13
			S-135	0.33	5.965	6-5/8 FH	8-1/2	4-1/4	10	13
	27.7	IEU	E-75	0.362	5.901	6-5/8 FH	8	5	10	13
			X-95	0.362	5.901	6-5/8 FH	8-1/4	4-3/4	10	13
			G-105	0.362	5.901	6-5/8 FH	8-1/4	4-3/4	10	13
			S-135	0.362	5.901	6-5/8 FH	8-1/2	4-1/4	10	13
´´2´´ LONGER THAN STANDARD.
