AGITADORS
AGITADORS

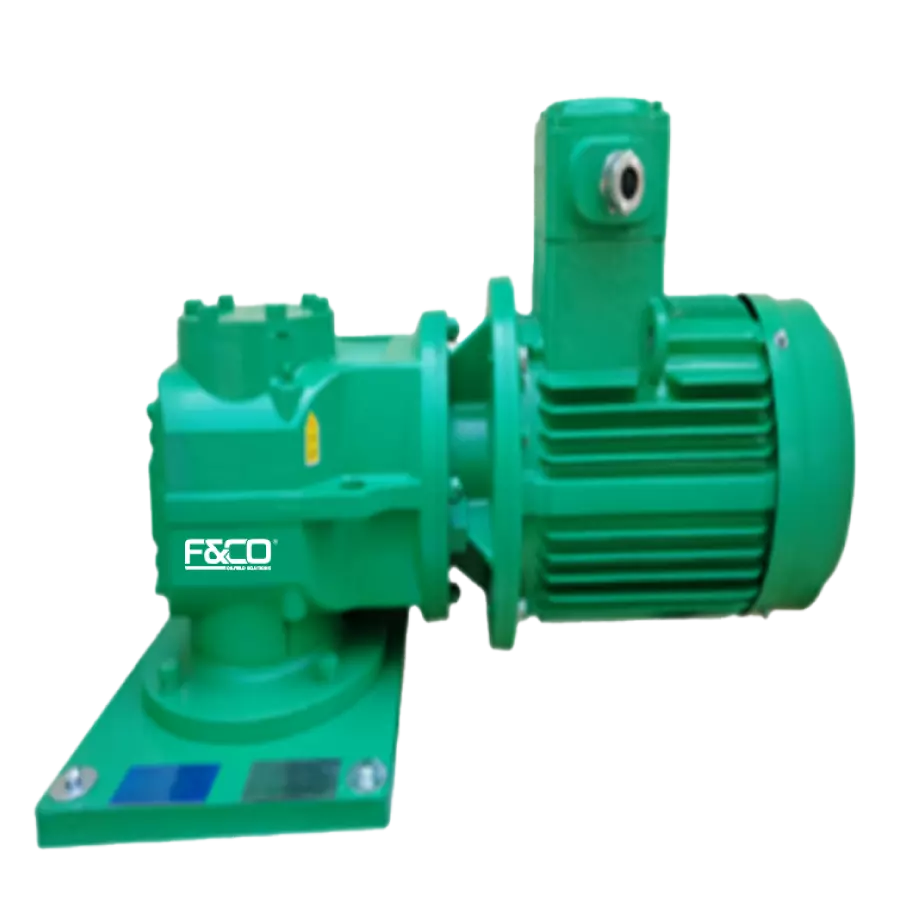

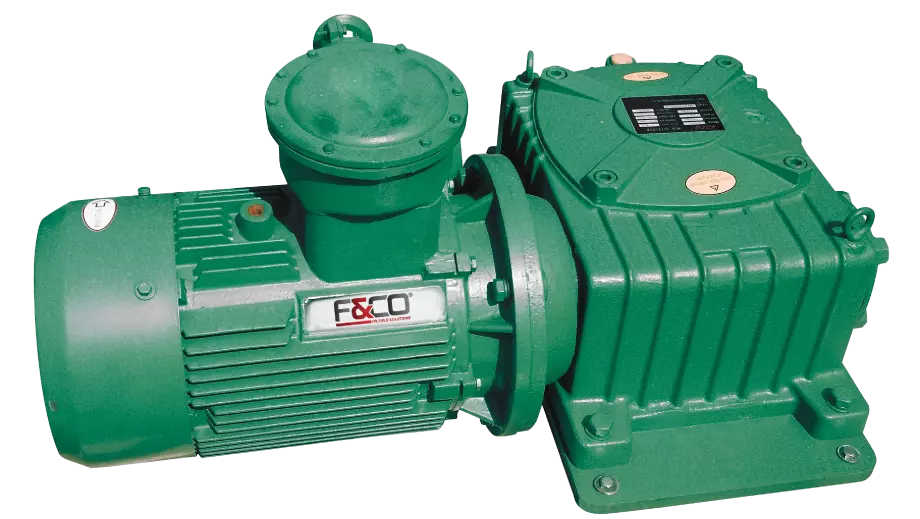

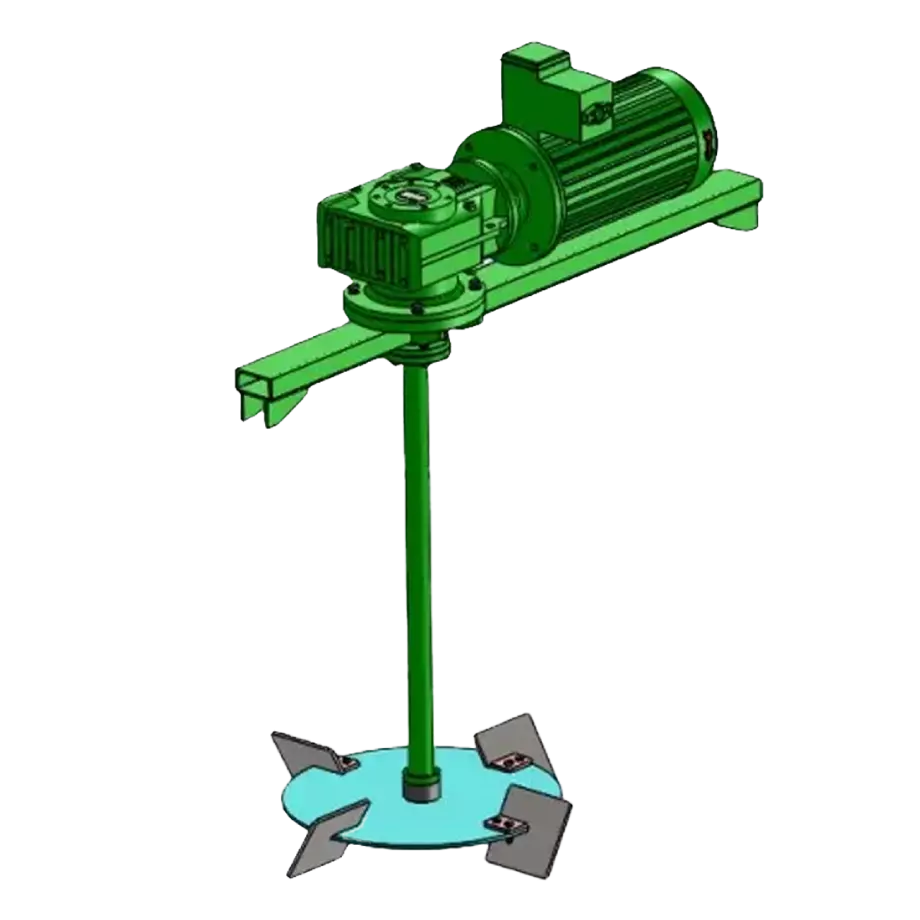

The Mug Agitator shown is designed to maintain both fluid uniformity and solids suspension. The homogeneity that this agitator generates in the fluid means that the solids do not precipitate to the bottom of the dam.
The design of this equipment consists of compact construction, light weight, balanced transmission, low noise, high transmission efficiency and strong stirring power. Therefore, it is a reliable product in solids control system.
DATA SHEET
F&CO OILFIELD SOLUTIONS AGITADORS
| F&CO OILFIELD SOLUTIONS MUD AGITATOR | ||||||||||
| Agitator Model | FCOMAG4HP650IMP | FCOMAG5.5HP850IMP | FCOMAG7.5HP950IMP | FCOMAG7.5HP800IMP | FCOMAG11HP1050IMP | FCOMAG11HP850IMP | FCOMAG15HP1100IMP | FCOMAG15HP950IMP | FCOMAG18.5HP1050IMP | FCOMAG22HP1100IMP |
| Motor (Kw) | 3 (4 HP) | 5.5 (7.5 HP) | 7.5 (10 HP) | 11 (15 HP) | 15 (20 HP) | 18.5 (25 HP) | 22 (30 HP) | |||
| Speed (rpm) | 60 ~ 72 (50 ~ 60 Hz) | |||||||||
| Impeler (mm) | 650 (25 1/2 in) | 850 (33 1/2 in) | 950 (37 1/2 in) | 800 (31 1/2 in) | 1050 (41 1/2") | 850 (33 1/2 in) | 1100 (43 1/2 in) | 950 (37 1/2 in) | 1050 (41 1/2 in) | 1100 (43 1/2 in) |
| Impeller Quantity (Parts) | 1 | 1 | 1 | 2 | 1 | 2 | 1 | 2 | 1 | 1 |
| Radio | 20 : 1 | |||||||||
| EX Standard | EXdIIBt4 | |||||||||
| Weight (Kg) | 122 | 197 | 247 | 247 | 291 | 291 | 393 | 393 | 445 | 516 |
| Dimensions (mm) | 794 x 440 x 473 | 960 x 540 x 598 | 1065 x 540 x 616 | 1187 x 540 x 621 | 1287 x 640 x 683 | 1307 x 640 x 698 | 1307 x 640 x 698 |
