JET MUD MIXER
JET MUD MIXER (Jet Mud hopper units)

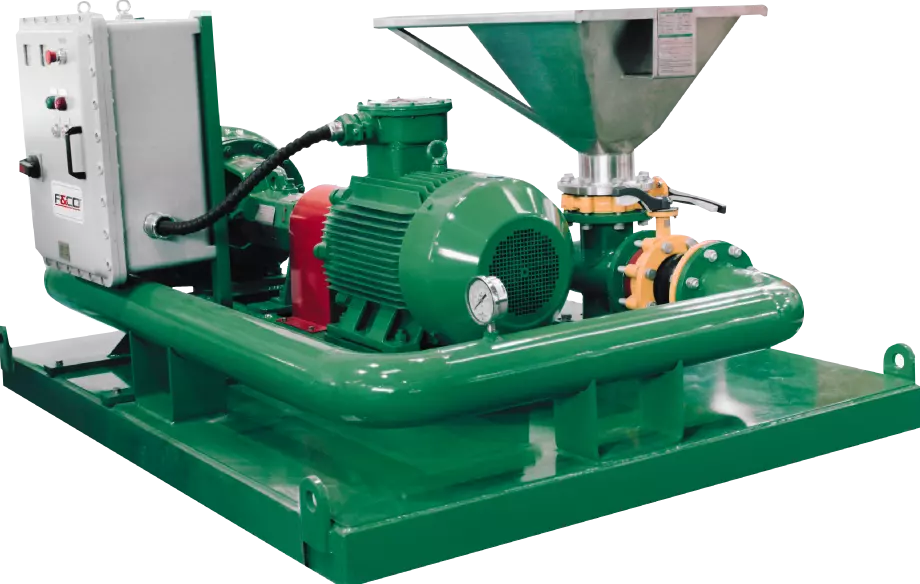

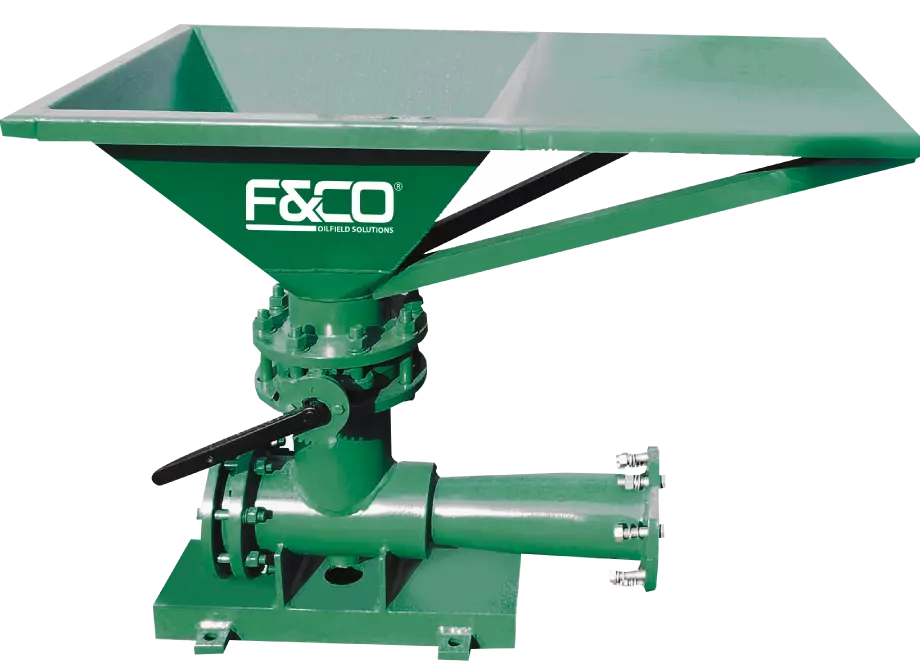

Our mixing funnel is newly designed equipment integrated with venturi funnel and mechanical seal jet mixing pump which are connected with manifold valve. With simple structure and high practicability, it can be operated reliably and moved conveniently.
F&CO® OILFIELD SOLUTIONS being the representative of GN Solids manufacturers can also design and manufacture the funnels according to customers’ requirements.
DATA SHEET
F&CO: JET MUD MIXER (Jet Mud hopper units)
| F&CO OILFIELD SOLUTIONS FUNNELS | |||||||
| Model Funnel | Capacity (m3/h) | Pressure (Mpa) | Motor (Kw / HP) | Entrance (In) | Exit (In) | Weight (Kg) | Dimensions L × W × H (mm) |
| FCOMIXHOP320M3 | 320 (1408 gpm) | 0.25 ~ 0.4 | 75 (100 HP) | 8 | 6 | 1785 | 2200 × 1840 × 1150 |
| FCOMIXHOP272M3 | 272 (1200 gpm) | 55 (75 HP) | 8 | 6 | 1675 | 2200 × 1840 × 1100 | |
| FCOMIXHOP200M3 | 200 (880 gpm) | 45 (60 HP) | 6 | 6 | 1475 | 2200 × 1840 × 1135 | |
| FCOMIXHOP150M3 | 150 (660 gpm) | 37 (50 HP) | 6 | 6 | 1460 | 2200 × 1840 × 1135 | |
| FCOMIXHOP120M3 | 120 (528 gpm) | 30 (40 HP) | 5 | 6 | 1380 | 2200 × 1840 × 1100 | |
| FCOMIXHOP90M3 | 90 (400 gpm) | 22 (30 HP) | 5 | 4 | 1167 | 1850 × 1540 × 1000 | |
| FCOMIXHOP65M3 | 65 (286 gpm) | 18.5 (25 HP) | 4 | 4 | 1147 | 1850 × 1540 × 1030 | |
| FCOMIXHOP55M3 | 55 (242 gpm) | 15 (20 HP) | 4 | 4 | 970 | ||
| FCOMIXHOP45M3 | 45 (200 gpm) | 11 (15 HP) | 4 | 4 | 950 |
