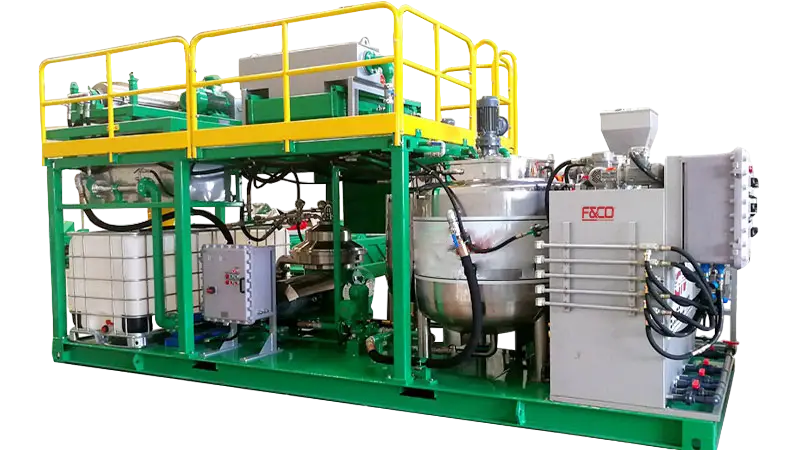

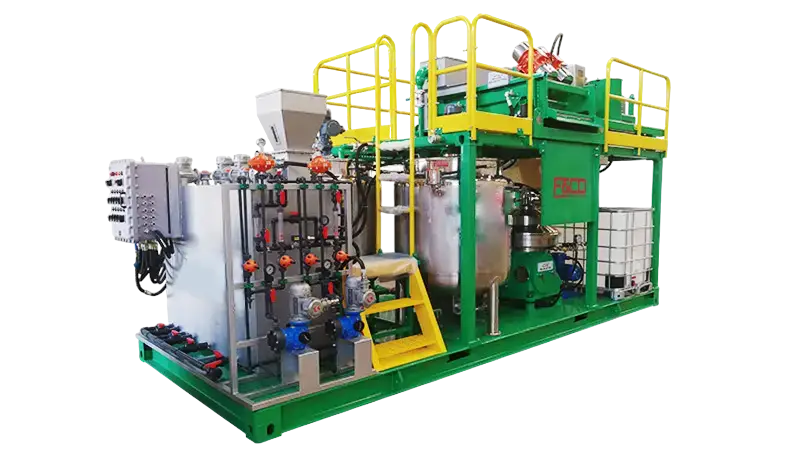

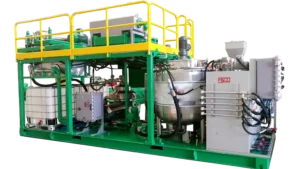

PACKAGE EQUIPMENT: Oily Sludge Treatment System

F&CO® oily sludge treatment system can realize the complete treatment of the oily sludge hot washing process for users.

The system can be used for the whole process of oily sludge material extraction, heating and conditioning, coarse particle screening, sludge dewatering, and oil-water-solid three-phase separation.

F&CO® oily sludge treatment system is a chemical-assisted mechanical separation process. Through the chemical hot washing process, the oil is eluted from the sludge, the sludge is dehydrated, and then the oil and water are separated. F&CO® oily sludge treatment system is often used for oily sludge in oil refineries, drilling oily sludge, oil tank cleaning sludge, and industrial oily sludge treatment. As a manufacturer of integrated oily sludge system, F&CO® can provide customized solutions based on the analysis of customers’ oily sludge.

CORE EQUIPMENT OF OILY SLUDGE TREATMENT SYSTEM:

Solid Vacuum Pump

High G Vibrating Screen

Decanter Centrifuge

3 Phase Disc Separator

After treated by oily sludge treatment system, the oil is recovered as a resource, the water can be reused for hot washing, and the oil content of the sludge is greatly reduced. Finally, the sludge can be processed for further harmless treatment through biodegradation, thermal analysis, or incineration.



DATA SHEET

PACKAGE EQUIPMENT: Oily Sludge Treatment System
