SCREW PUMP
SCREW PUMP

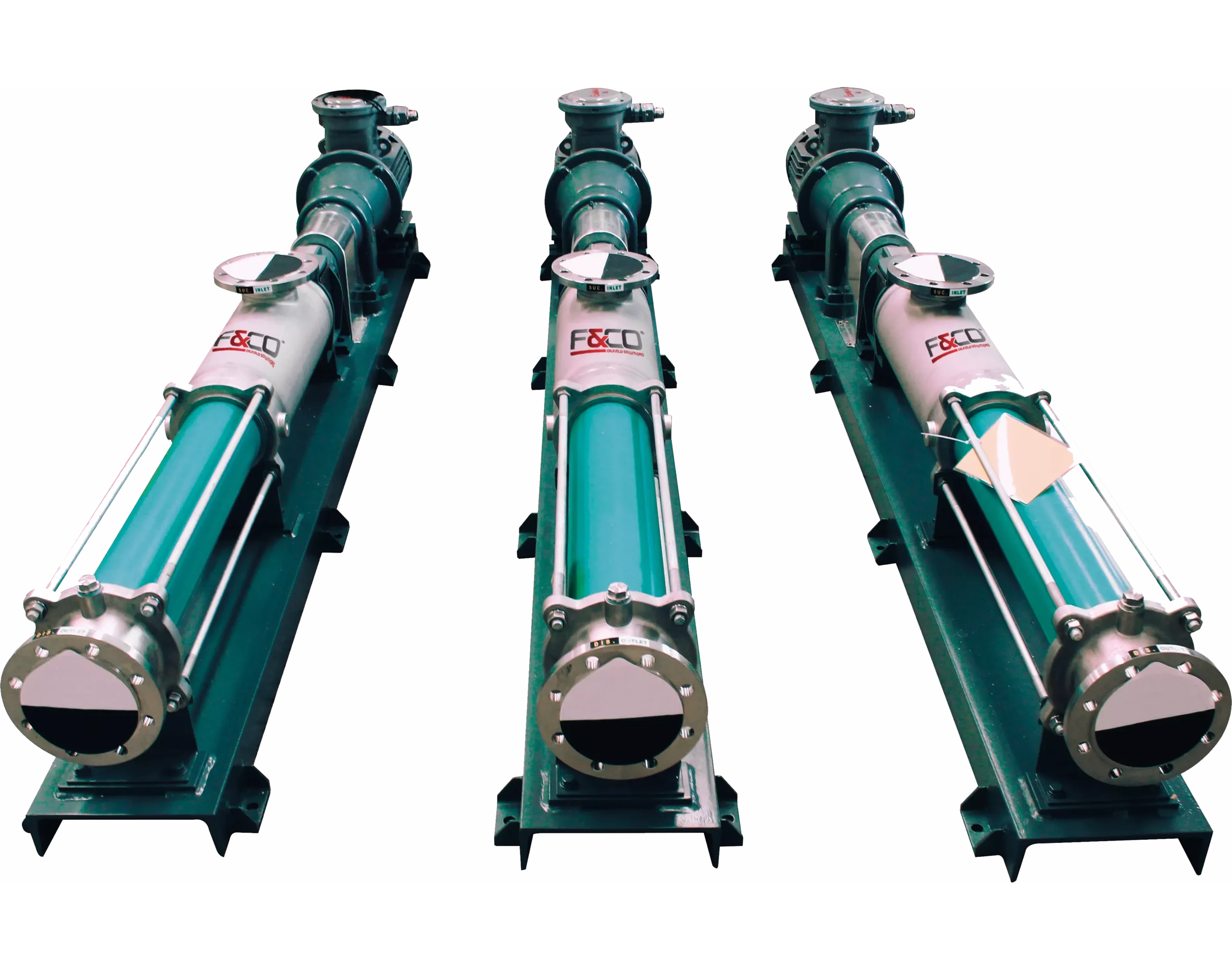

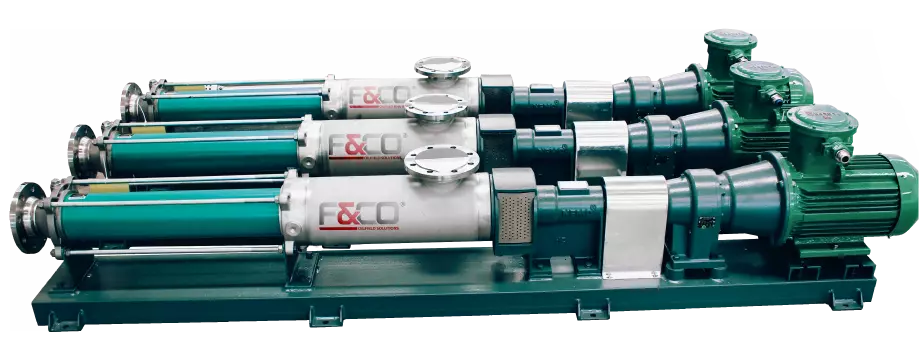

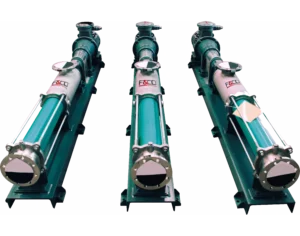

The Positive Displacement Pump is a single screw pump and is the ideal pump to feed the decanter centrifuge without shearing or agitating the drilling mud.
The stator is made of elastomeric material, so it has particular advantages than other pumps for transferring high viscosity fluids and hard suspended particles included.
DATA SHEET
F&CO: SCREW PUMP DESCRIPTION
| F&CO OILFIELD SOLUTIONS POSITIVE DISPLACEMENT PUMP | |||||||||
| Model | Flow (m3/h) | Pressure (Mpa) | Motor (Kw) | Speed (rpm) | Entrance (in) | Exit (in) | Ex Standard | Weight (kg) | Dimensions L x W x H (mm) |
| FCOPUMDPOS44 | 10 (45 gpm) | 0.3 | 4 (5.5 HP) | 244 | 3 | 3 | EXdIIBt4 IECEX A-TEX | 245 | 2245 x 320 x 550 |
| FCOPUMDPOS88 | 20 (90 gpm) | 5.5 (7.5 HP) | 210 | 3 | 3 | 323 | 2450 x 340 x 562 | ||
| FCOPUMDPOS132 | 30 (130 gpm) | 7.5 (10 HP) | 258 | 4 | 4 | 386 | 2764 x 370 x 600 | ||
| FCOPUMDPOS176 | 40 (180 gpm) | 11 (15 HP) | 252 | 4 | 4 | 454 | 3270 x 370 x 665 | ||
| FCOPUMDPOS220 | 50 (220gpm) | 11 (15 HP) | 273 | 5 | 5 | 608 | 3790 x 400 x 782 | ||
| FCOPUMDPOS264 | 60 (270 gpm) | 15 (20 HP) | 225 | 5 | 5 | 649 | 3322 x 550 x 740 | ||
| FCOPUMDPOS308 | 70 (310 gpm) | 22 (30 HP) | 230 | 6 | 6 | 875 | 3740 x 420 x 785 | ||
| FCOPUMDPOS352 | 80 (360 gpm) | 22 (30 HP) | 283 | 6 | 6 | 875 | 3740 x 420 x 785 | ||
| FCOPUMDPOS396 | 90 (400 gpm) | 22 (30 HP) | 205 | 6 | 6 | 875 | 3740 x 420 x 785 |
