SEPARATION EQUIPMENT: Chemical Dosing Unit

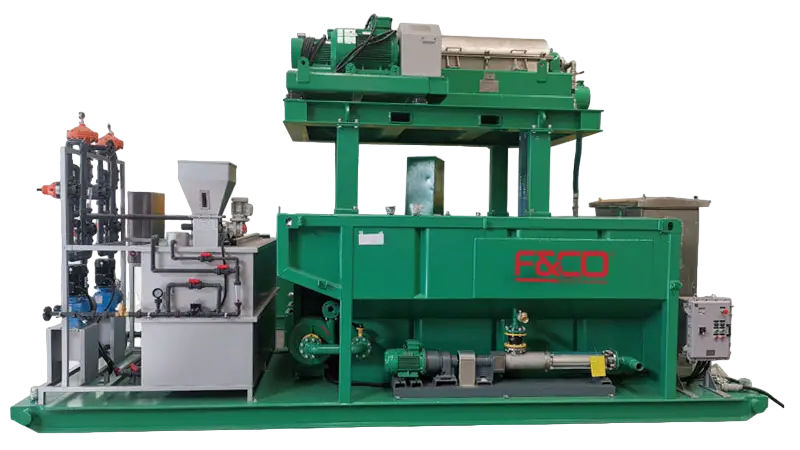

The F&CO® by GN Dewatering System includes Chemical Dosing Unit and Dewatering Centrifuge, and it is widely used to separate fine particles in wastewater. For wastewater treatment, simple mechanical separation method can only be used to separate particles of 2-5 microns, but it is difficult to separate finer particles. Ultrafine particles in wastewater can be separated out by using GN Chemical Dosing Unit together with High-Speed Decanter Centrifuge, which can meet customers’ separation requirement.

F&CO® Chemical Dosing Unit has features of compact structure, small size, corrosion resistance, low energy consumption, easy operation and maintenance. The Dosing compartment can be used for stirring, dissolving and storage of Flocculent, and then Chemical can be feed to each dosing point by dosing Pump. According to the principle of chemical preparation and customers’ requirement, F&CO® OlLFIELD SOLUTIONS can offer two kinds of unit.

F&CO® OLFIELD SOLUTIONS with GN can also optimize and put together of the two unit and provide customized solutions for clients.

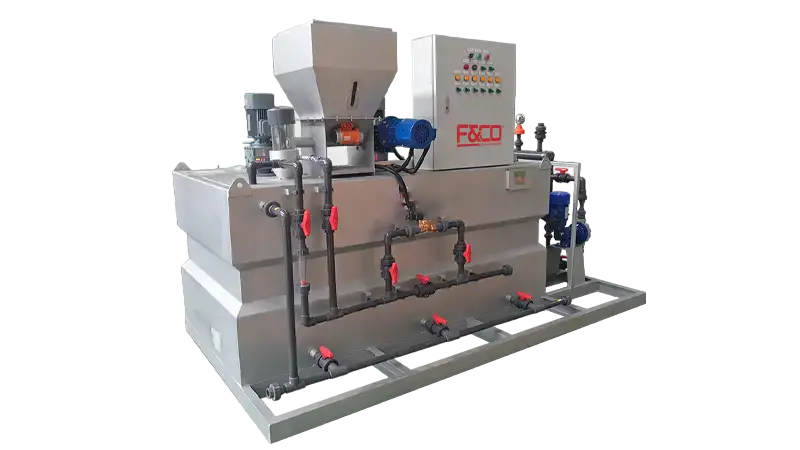

F&CO® FULL AUTOMATIC DRY POWDER DOSING UNIT (PAM):

WORKING PRINCIPLE:

  • The main box of the Dry Powder Dosing unit is made of stainless steel. The box is divided into three compartments, Preparation Stage, Curing Stage, and Storage Stage.
  • During the automatic dispensing process, the operator adds the chemical to the chemical preparation tank, then starting the system, the mixture of chemical and water would firstly enters into the Stirring Dissolving Tank, and it would be fully stirred and mixed; When the Stirring Dissolving Tank is full, the chemical would flow to the Curing Dissolving Tank, and stirring and mixing again here; When the Curing Dissolving Tank is full, the chemical would flow to the Dissolved Chemical Storage Tank, and the configured chemical can be feed to the dosing point by the Dosing Pump.



FEATURES AND ADVANTAGES:

  1. High integrated all-in-one Equipment.
  2. Highly automated, the complete system can be controlled intelligently by PLC.
  3. Small size, easy to operate and install, the on-site installation is only related with water and power.
  4. Safety and Reliable work. The system will automatically shut down and issue an alarm signal if the equipment fails to work.
  5. Stable Performance, and Fully Automatic Control, the amount of dry powder is automatically adjusted according to the change of water volume.
  6. Good corrosion resistance, and all contact parts with the medium are made of engineering plastics or stainless steel.
  7. It is suitable for powder, granular, fibrous and other materials, as well as the configuration and dosing of liquid materials.

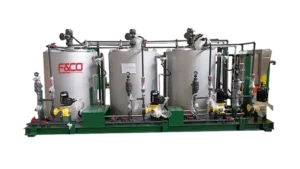

F&CO® SINGLE BARREL LIQUID CHEMICAL DOSING UNIT (PAC):

WORKING PRINCIPLE:

  • The main body of the Liquid Solvent Dosing Unit includes Mixing Tank and Mixer. Its volume meets the requirement of Liquid Flocculants flow, and the Mix Tank is equipped with electric mixer.
  • The chemical is pre-configured by the operator and filled into the Mixing Tank by pump. It can also be prepared by manually adding powder chemical into the Mixing Tank and mixing with water in proportion.



FEATURES AND ADVANTAGES:

  • Stable performance, large volume of Solution Tank, and low energy consumption.
  • Compact structure, beautiful appearance, and small footprint.
  • Easy operation and maintenance, large dosing flow.
  • PLC control, fully automatic operation, remote control is available.



F&CO® is able to put the optimized combination of the chemical dosing unit into the renovated container and connect with external equipment through the reserved manifold connection, and it helps to facilitate operation and transportation. The container-type dosing unit can be transported. Operators can operate without obstacles inside the container if outdoor environment is terrible.



OTHER APPLICATIONS OF F&CO® CHEMICAL DOSING UNIT:

  • Adding Coagulant, Filter Aid, Disinfectant, Acid and Alkali Solution for water treatment
  • Adding Corrosion and Scale Inhibitor in cooling water and circulating water
  • Adding acid, alkali and other solutions in chemical industry, printing and dyeing.
