SHALE SHAKER
SHALE SHAKER

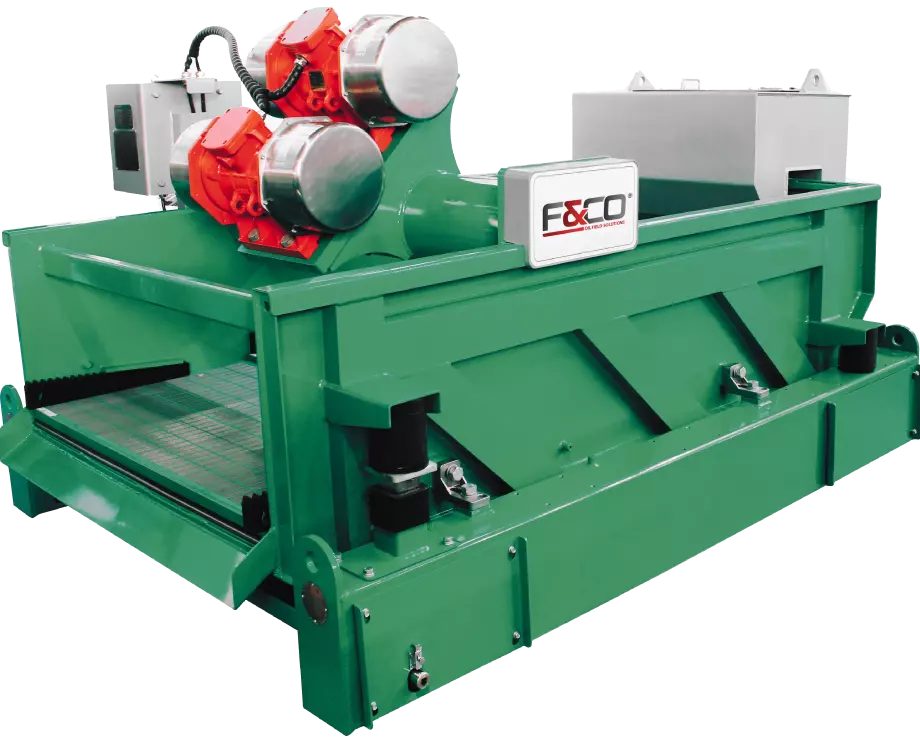

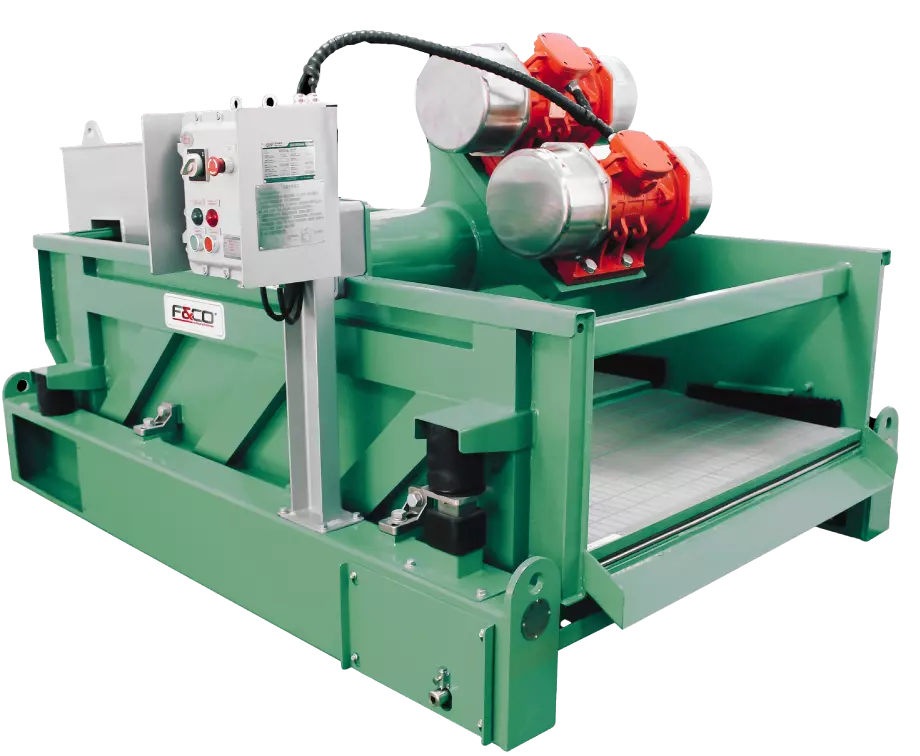

The Shale Shaker that F&CO® OILFIELD SOLUTIONS distributes is designed to work in conditions of high temperatures and heavy fluids, it works with a “G” force above 8.0 G.

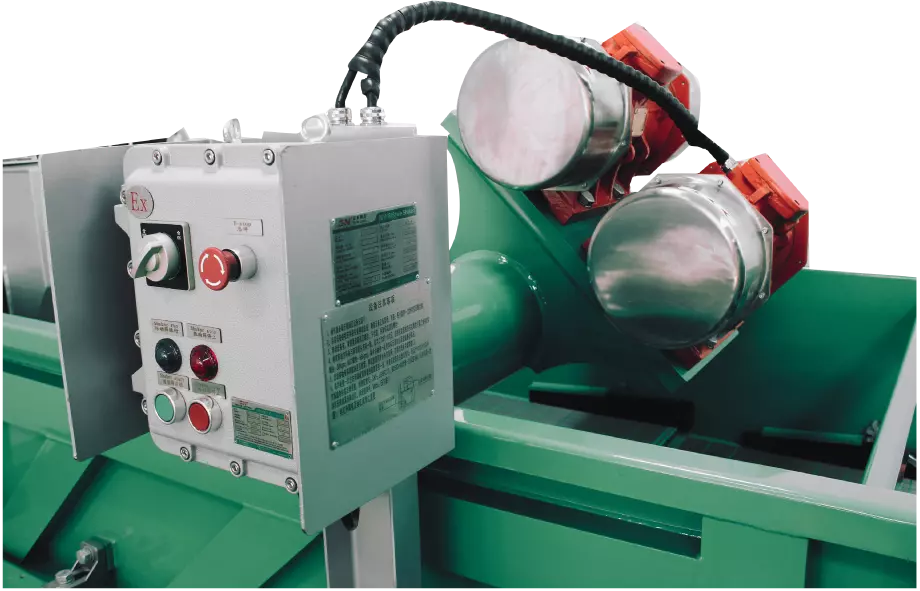

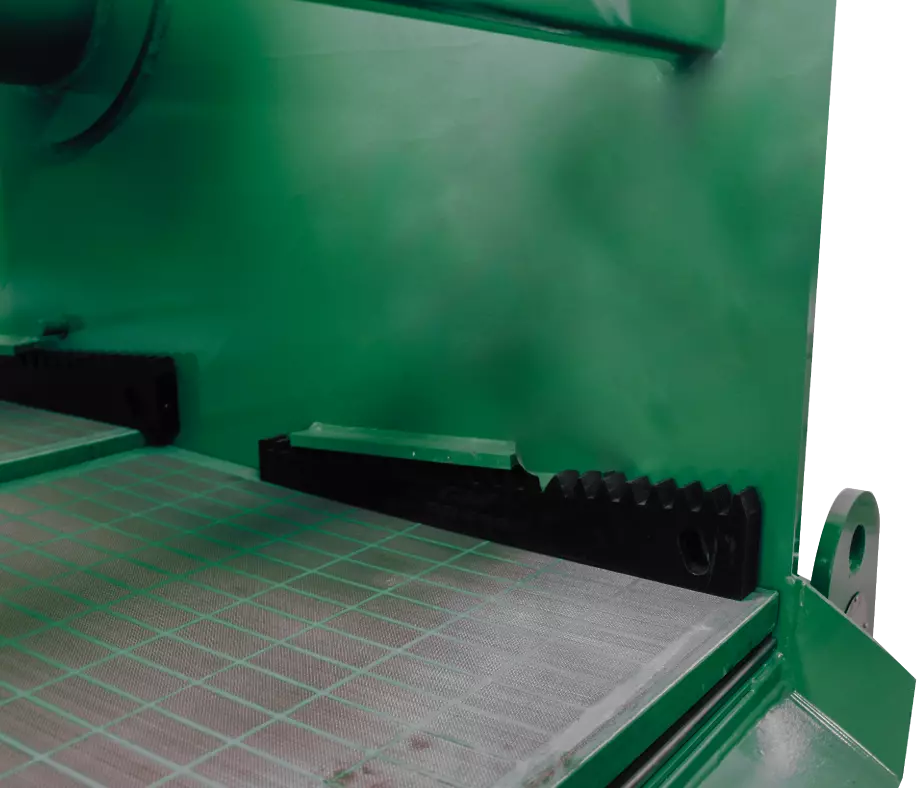

The bed that goes under the tremor is made of stainless steel to prevent corrosion and prolong the life of the equipment. The seals on these vibrators are patented technology and create a seal that prevents the passage of fine solids into the fluid.
DATA SHEET
F&CO: SHALE SHAKER DESCRIPTION
F&CO OILFIELD SOLUTIONS SHALE SHAKERS | ||||||||||||||||
Shale Shaker Model | Vibration Mode | Capacity (m3/h) | Motor Vibration (Kw) | Quantity of Meshes (Pieces) | Mesh Size | Mesh area (m2) | G Force | Vibration Amplitude (mm) | Deck Angle | Power Type | Weir Height (mm) | EX Standard | Weigth (kg) | L x W x H (mm) | ||
FCOSHLM200X2 | Motion Linear | 45 (200GPM) | 2 x 1.0 | 2 | 750 x 900 | 1.35 | ≤ 7.5 G | 4.14 -5.96 | + 2° | Top Box Feeder | 714 | ExdIIBT4 IECEX ATEX | 929 | 1816x1657x1083 | ||
FCOSHLM528X3 | 120 (528GPM) | 2 x 1.72 | 3 | 700 x 1250 x 29 | 2.63 | 4.14 -5.96 | - 1 ῀+ 5° | Top Box Feeder | 1060 | 1665 | 2462x2007x1476 | |||||
FCOSHLM528X3V2 | 120 (528GPM) | 2 x 1.72 | 3 | 700 x 1250 x 29 | 2.63 | 4.14 -5.96 | - 1 ῀+ 5° | Landfill Feeder | 895 | 1571 | 2744x1968x1435 | |||||
FCOSHLM616X4 | 140 (616GPM) | 2 x 1.72 | 4 | 585 x 1165 x 40 | 2.73 | 4.14 -5.96 | - 1 ῀+ 5° | Landfill Feeder | 895 | 1624 | 2989x1968x1435 | |||||
FCOSHLM616X6 | 140 (616GPM) | 2 x 1.94 | 6 | Up: 750x900 | Down: 700x1250 | Up: 2.03 | Down: 2.63 | 4.04 - 5.82 | - 1 ῀+ 5° | Landfill Feeder | 1624 | 1795 | 2744x1968x1435 |
