VERTICAL CUTTINGS DRYERS – CUTTING DRYER
VERTICAL CUTTINGS DRYERS – CUTTING DRYER

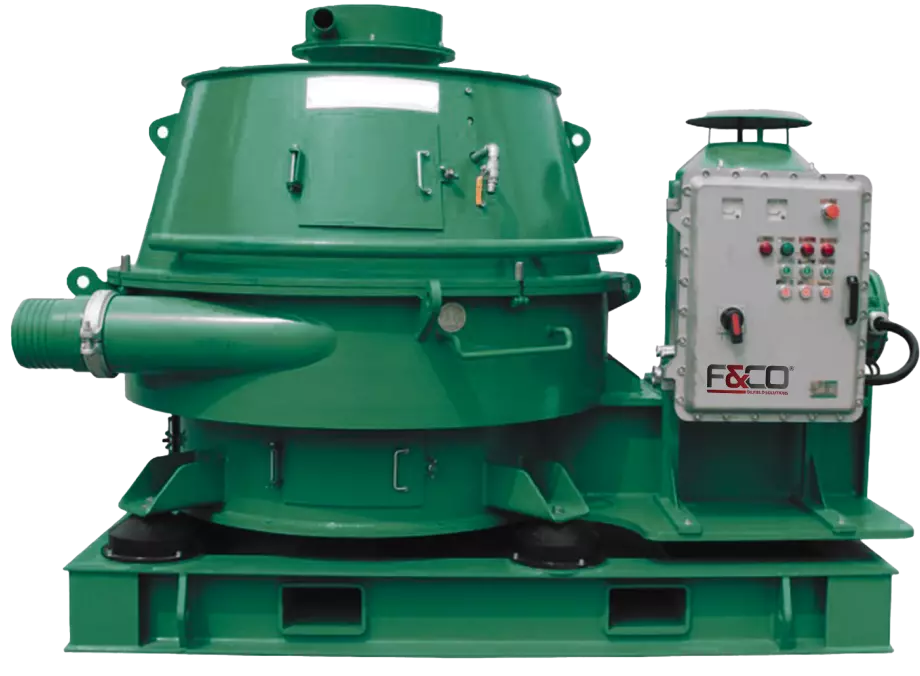

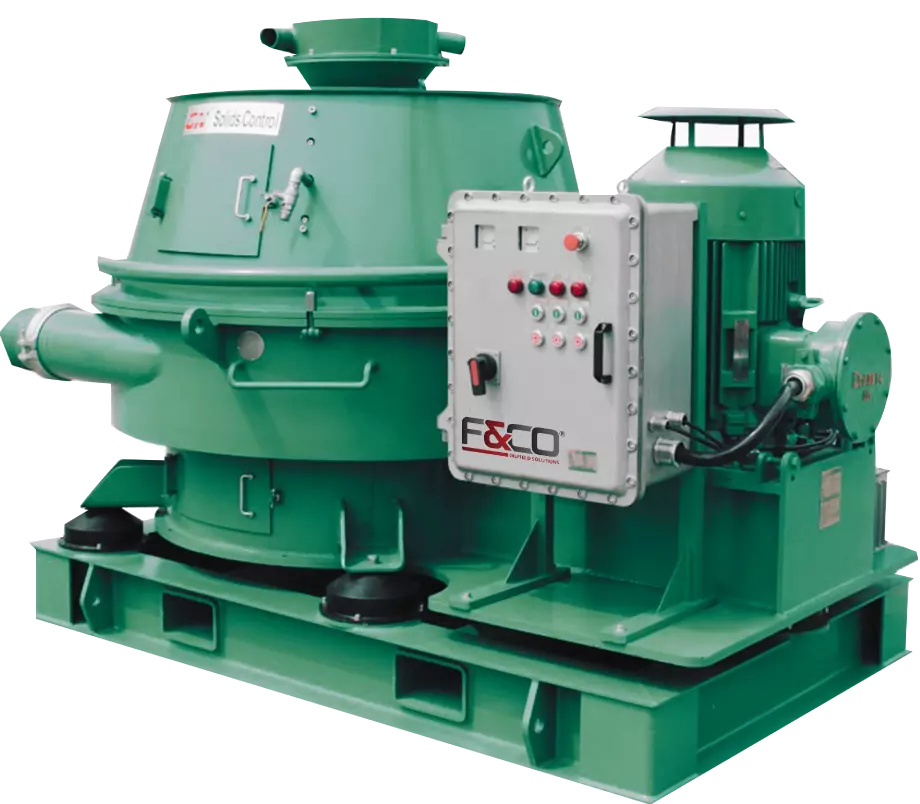

The Vertical Cuttings Dryers distributed by F&CO OILFIELD SOLUTIONS® is manufactured with a stainless steel bowl that serves to trap wet solids with centrifugal force at over 900 RPM and G force at 420 G until dry.
DATA SHEET
F&CO: VERTICAL CUTTING DRYER DESCRIPTION
| F&CO OILFIELD SOLUTIONS SECADOR VERTICAL DE RECORTES | |||||||||||||||||
| Model Secador de Recortes | Capacity (Tons/H) | Drying Efficiency | Screen Max Diameter (mm) | Screen Opening (mm) | Rotation Speed (rpm) | G Force (G´s) | Oil Tank Capacity (Lt) | Air Knife Input Pressure (Mpa) | Air Knife Input Capacity (m3/m) | Main Motor (Kw) | Back Drive Motor (Kw) | Oil Pump (Kw) | Flushing Pump Power (Kw) | Ex Standard | Electric Cabinet | Weight (Kg) | Dimensión L x W X H (mm) |
| FCOVCD900 | 30 ~ 50 | OOC ≤ 5% | 930 | 0.25 / 0.35 / 0.5 | 900 | 420 | 48 | 0.69 | 1.8 | 55 (75 HP) | N/A | 0.55 (0.75 HP) | 4 (5.5 HP) | ExdIIBt4 IECEX ATEX | Exd | 4800 | 2685 x 1290 x 1723 |
| FCOVCD900VFD | 0 ~ 900 | 11 (15HP) | Positive Pressurized | 4900 |
